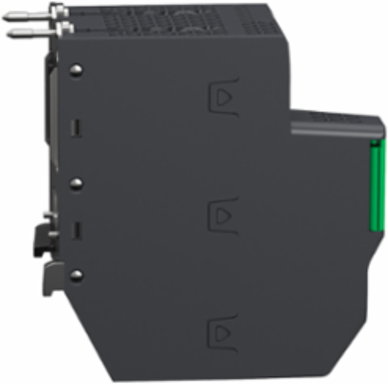

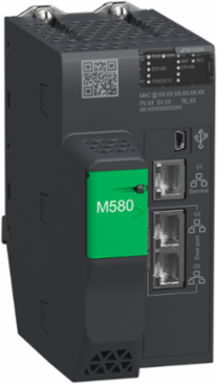

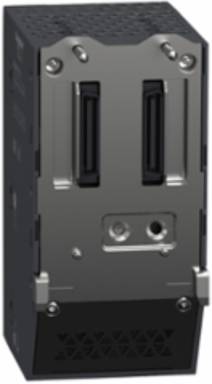

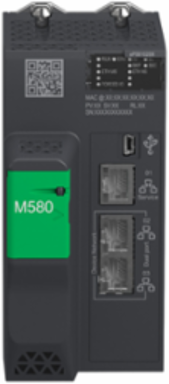

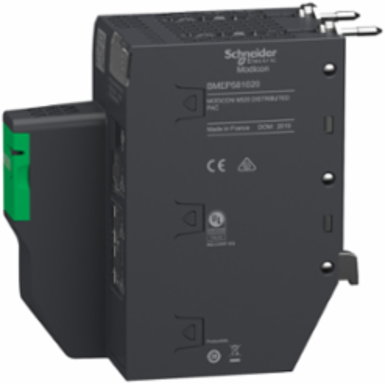

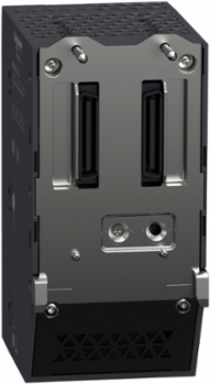

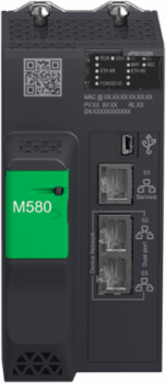

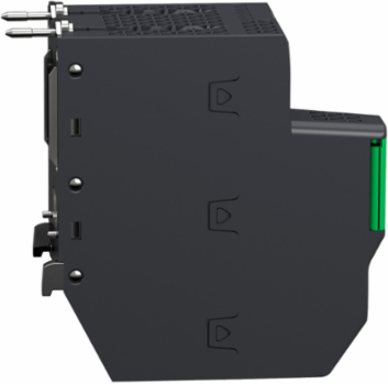

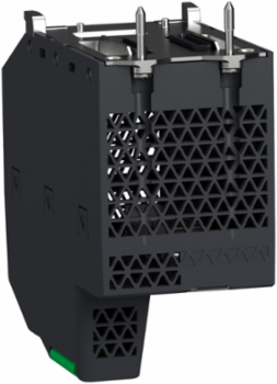

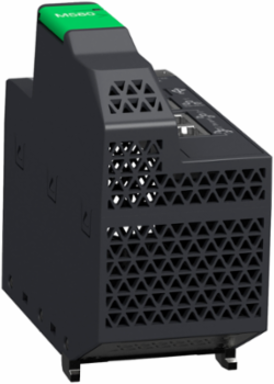

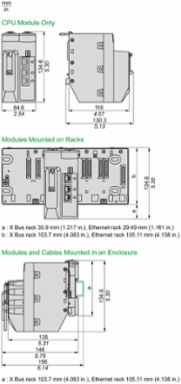

Schneider Electric BMEP581020H Modicon M580 Processor Module, 4MB RAM, 1024 Digital I/O, Severe Environment
- MPN: BMEP581020H
- PPN: SCH-BMEP581020H
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This processor module offers a maximum of 4 rack configuration and 36 application specific channels. It is a processor module with a current consumption of 270mA at 24V DC. It supports 1024 discrete, 256 analogue local I/O channels and 64 distributed equipment. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for integrated connections. It offers 600000 hours of MTBF. It has an integrated RAM of 4MB for program, 384kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by UL, ATEX, IEC-Ex, CE, Merchant Navy, CSA, RCM and EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.
Documentation & Downloads
Specifications
Key Specifications
| Compliance | |TAA Compliant | BAA Compliant via COTS |
|---|
| Country of Origin | Brazil, France, Indonesia, Philippines, United States |
|---|
Communications & Management Attributes
| Communication Module Processor Capacity | 2 Ethernet communication module, 2 AS-Interface module |
|---|
| Communication Service | DIO scanner |
|---|
Complementary Attributes
| Integrated Connection Type | 1 Ethernet TCP/IP service port2 Ethernet TCP/IP device network, USB type mini B |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Application Structure | 1 cyclic/periodic master task, 64 event tasks, 1 periodic fast task, 2 auxiliary tasks |
| Status Led | 1 LED (Green) processor running (RUN)1 LED (Red) processor or system fault (ERR), 1 LED (Red) I/O module fault (I/O), 1 LED (Green) download in progress (DL), 1 LED (Red) memory card or CPU flash fault (BACKUP)1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (green/red) Eth NS (Ethernet network status) |
| Application Specific I/O | serial link, counter, accurate time stamping, motion control, SSI encoder, HART |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.3716967136, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 64 kg CO2 eq., 64.4816901408 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1312016EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1949 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Checks | process control |
| Current Consumption | 270 mA 24 V DC |
| Memory Description | integrated RAM, 4 MB programintegrated RAM, 384 kB dataexpandable flash, 4 GB data storageintegrated RAM, 10 kB system memory |
| Number Of Application Specific Channel | 36 |
| Number Of Instructions Per Ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic40 Kinst/ms 100 % Boolean |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Specific Application | for severe environments |
| Range Of Product | Modicon M580 |
| Shock Resistance | 30 gn |
| Supply | internal power supply via rack |
| Total Lifecycle Carbon Footprint | 230 kg CO2 eq. |
| Pep Code | ENVPEP1312016EN |
| Pep Verification Date | 2022-12-01 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | The Modicon M580 ePAC module provides cutting-edge features and high-end performances for small to large process automation for 10 years with a 100% use rate. Typical electrical power is 7,08 W (295 mA at 24 V DC) |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 510.8832 |
| Energy Model - Installation [A5] | Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH |
| Energy Model - End Of Life [C1-c4] | Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH |
| Discrete I/O Processor Capacity | 1024 I/O |
| Package Weight(Lbs) | 892.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Environmental Characteristic | gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2 |
| Certificate Agency | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.113542723, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0032166479 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 166 kg CO2 eq., 165.5145762712 |
| Local Publishable Date | 2026-04-04 |
| Stocking Flag | N |
| Device Type | PLC System - PLC CPU |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Control Channels | programmable loops |
| Marking | CE |
| Mtbf Reliability | 775000 H |
| Number Of Distributed Equipment | 64 |
| Number Of Racks | 4 |
| Product Or Component Type | processor module |
| Protective Treatment | conformal coating |
| Returnability | Yes |
| Software Version | EIME v5.8.1 |
| Sustainable Packaging | No |
| Vibration Resistance | 3 gn |
| Database Version | 2020-12 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: France |
| Energy Model - Use [B6] | Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH |
| Analogue I/O Processor Capacity | 256 I/O |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109160 |
