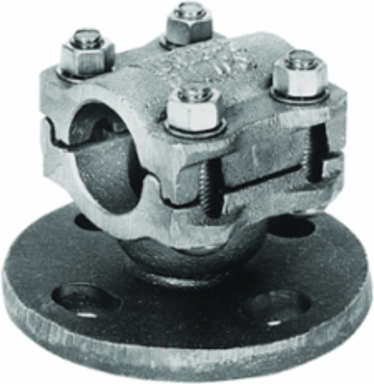

Burndy UH145 Copper Alloy Bus Support 3/4 IPS, 5 Inch Bolt Dia, 3/8 Inch Bolt, 2.63 Inch Width
- MPN: UH145
- UPC: 781810125892
- PPN: BUR-02003929
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cast Cu Alloy Bus Support, 3/4" IPS, 5" Bolt Dia, 3/8" Bolt
Documentation & Downloads
Specifications
Additional
| Rating - Voltage | 230 kV |
|---|---|
| Dimension - Width | 2.63 in |
| Dimension - B Length | 2.50 in |
| Bolt Circle Diameter | 5.00 in |
| Size | 3/4 in IPS |
| Plating Type | Unplated |
| Fitting Type | Slip or Rigid |
| Certification - RoHS Compliance Status | Exempt |
| Certification - ETL | No |
| Certification - cULus | No |
| One Wrench Installation | Yes |
| Application | Substation |
| Installation Torque Recommended | 240 in-lb |
|---|---|
| Dimension - Height | 3.13 in |
| Dimension - Hole Size | 0.69 in (11/16 in) |
| Mounting Hardware | 5/8-11 x 1 in |
| Material | DURIUMTM Silicon Bronze, Copper Alloy |
| Connector Type | Bus Support |
| Number Of Conductors | 1 |
| UL Listed | No |
| Certification - CSA Approved | No |
| Certification - UL Recognized | No |
| Type | Cable or Tube to Insulator Bus Supports |
| Hardware Type | Cap mounting kit (without nuts) |
