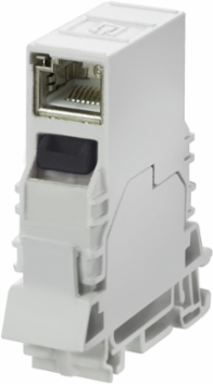

Weidmuller 8946920000 IE-TO-RJ45-C
- MPN: 8946920000
- PPN: WDM-8946920000
CAD
$63.67
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mounting rail outlet, RJ45, Coupling, IP20
Documentation & Downloads
Specifications
Electrical Properties
| Contact resistance | ≤ 20 mΩ |
|---|---|
| Dielectric strength, contact / contact | ≥ 1000 V DC |
| Insulation strength | 500 MΩ |
| Current-carrying capacity at 50 °C | 1 A |
|---|---|
| Dielectric strength, contact / shield | ≥ 1500 V DC |
| PoE / PoE+ | conforming to IEEE 802.3at |
General Data
| Connection 1 | RJ45 |
|---|---|
| Configuration | Switchable volt. connection from module/coupling to mounting rail |
| Colour | Light Grey |
| Vibration resistance acc. to IEC 60512-4 | 50 ms-2 sinusoidal (9…500 Hz) |
| Housing main material | PA UL 94 V0 |
| Contact material | Spring steel, Ni 1.2 µm |
| Type of mounting | TS 35 |
| Plugging cycles | 750 |
| Connection 2 | RJ45 |
|---|---|
| Wiring | Coupling |
| Shock resistance acc. to IEC 60512-4 | 250 ms-2 |
| Humidity | 0...93 % rel. humidity |
| Category | Cat.6A / Class EA (ISO/IEC 11801 2010) |
| Contact surface | Au ≥ 0.8 µm |
| Protection degree | IP20 |
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|

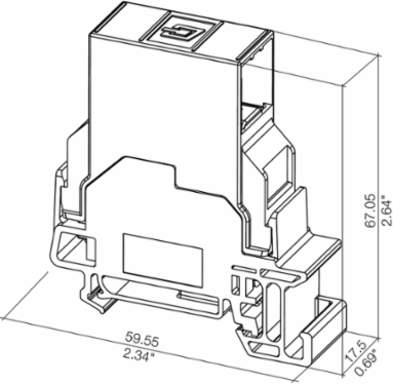

Dimensions And Weights
| Net weight | 52.1 g |
|---|
Standards
| Connector standard | IEC 60603-7-51 |
|---|
Classifications
| ETIM 6.0 | EC000313 |
|---|---|
| eClass 9.0 | 27-44-03-20 |
| eClass 10.0 | 27-44-03-20 |
| ETIM 7.0 | EC000313 |
|---|---|
| eClass 9.1 | 19-17-01-25 |
| UNSPSC | 30-21-18-01 |
Temperatures
| Humidity | 0...93 % rel. humidity |
|---|---|
| Operating temperature, min. | -40 °C |
| Temperature range, installation, min. | -25 °C |
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Temperature range, installation, max. | 70 °C |
