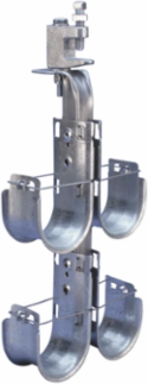

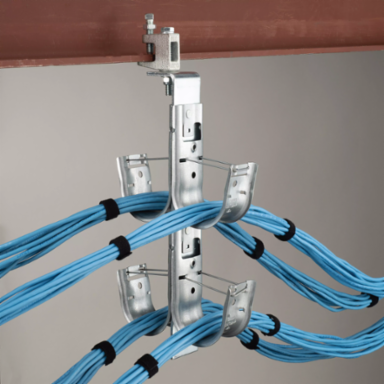

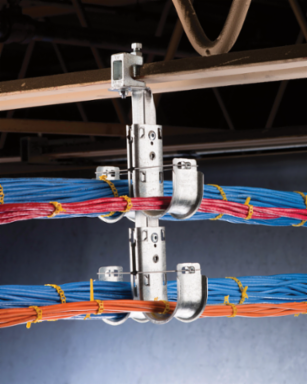

nVent Caddy CAT64HPDFM2 nVent CADDY Cat HP J-Hook Tree, Flange Mount, Double Sided, 4" dia, 2 Tier
- MPN: CAT64HPDFM2
- UPC: 782856800859
- PPN: CAD-CAT64HPDFM2
- UNSPSC: 39131709
CAD
$104.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
nVent CADDY Cat HP J-Hook Tree, Flange Mount, Double Sided, 4" dia, 2 Tier
Features
- Easy installation to beam flanges
- Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic
- Ready to use out of the box, saving installation time and labor
- Requires no screws, rivets or special tools for assembly
- Single- or double-sided tree configurations provide multiple J-Hooks with one structural attachment
- Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
- Complies with EN 50174-2
- Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
Documentation & Downloads
Specifications
Key Specifications
| BABA | Yes, BABA Compliant |
|---|---|
| Finish | Pregalvanized |
| Diameter (Ø) | 100 |
| Height (H) | 387 |
| Torque (TQ) | 7 |
| Static Load | 1,068 |
| Material | Steel |
|---|---|
| Type | Double Sided |
| Tiers | 2 |
| Width (W) | 254 |
| Static Load (F) | 240 |
| Sub Brand | CADDY |
