nVent Caddy CAT64HPSCM3 nVent CADDY Cat HP J-Hook Tree, Ceiling Mount, Single Sided, 4" dia, 3 Tier
- MPN: CAT64HPSCM3
- UPC: 782856799337
- PPN: CAD-CAT64HPSCM3
- UNSPSC: 39131709
CAD
$87.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

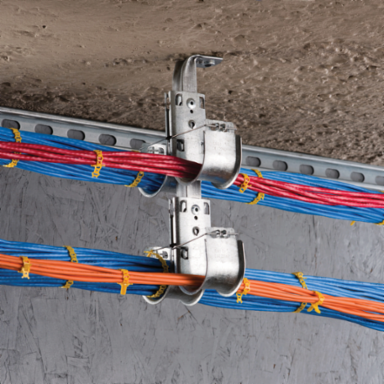

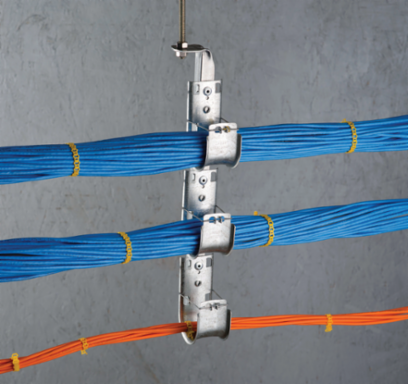

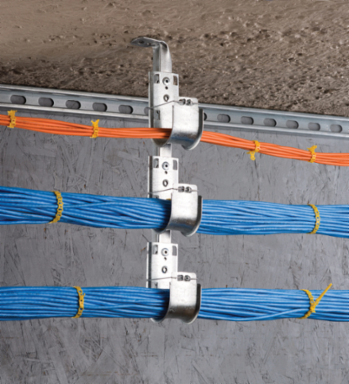

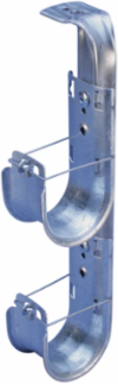

nVent CADDY Cat HP J-Hook Tree, Ceiling Mount, Single Sided, 4" dia, 3 Tier
Features
- Ideal for attaching to concrete, steel or wood surfaces
- Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic
- Ready to use out of the box, saving installation time and labor
- Requires no screws, rivets or special tools for assembly
- Single- or double-sided tree configurations provide multiple J-Hooks with one structural attachment
- Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
- Complies with EN 50174-2
- Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
Documentation & Downloads
Specifications
Key Specifications
| BABA | Yes, BABA Compliant |
|---|---|
| Finish | Pregalvanized |
| Diameter (Ø) | 100 |
| Height (H) | 578 |
| Hole Size 1 (HS1) | 10.3 |
| Static Load 1 (F1) | 810 |
| Sub Brand | CADDY |
| Material | Steel |
|---|---|
| Type | Single Sided |
| Tiers | 3 |
| Width (W) | 138 |
| Hole Size 2 (HS2) | 4.7 |
| Static Load 2 (F2) | 810 |
