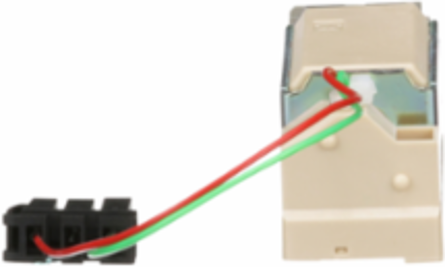

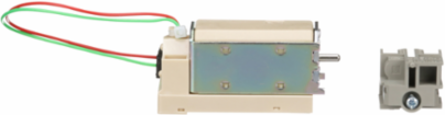

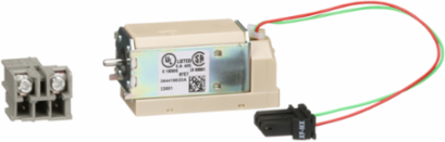

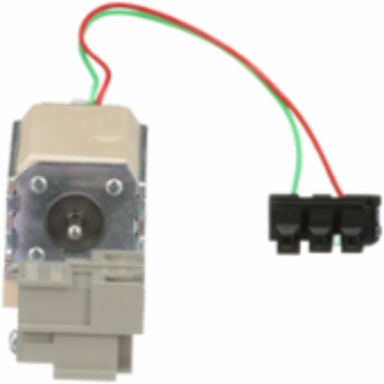

Square D S33661 PowerPact Shunt Trip Accessory 120VAC for Remote Circuit Tripping
- MPN: S33661
- UPC: 785901700425
- PPN: SCH-S33661
CAD
$1333.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The PowerPact™ H-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. The L-Frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This PowerPact L, Circuit Breaker, Shunt Trip, 100-130V AC/DC.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- PowerPact M || PowerPact P || PowerPact R
- Device Application
- trips circuit breaker from remote location
Circuit Breaker Typestandard
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2304020EN
Circularity ProfileN/A
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
