Square D

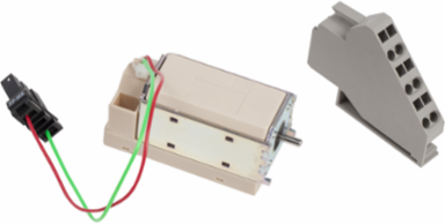

Square D S47362 MasterPacT NT/NW Shunt Trip, 100-130V AC/DC, 3.5 Nm Torque

MasterPacT NT/NW Shunt Trip, 100-130V AC/DC, 3.5 Nm Torque
  • MPN: S47362
  • UPC: 785901942771
  • PPN: SCH-S47362

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$415.91/ EA

Description

This is a shunt trip unit accessory for MasterPacT NT and NW circuit breakers. This is a trip unit accessory. This trip unit has a rated voltage for 100-130 VAC. This product complies with UL and CSA standards. This trip unit has a tightening torque of 3.5 Nm.

Specifications

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2307032EN
Circularity ProfileENVEOLI2307032EN
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Specifications

Range Of Product
MasterPact NT || MasterPact NW
Accessory / Separate Part Category
trip unit accessory
Circuit Breaker TypeY-frame
Product Or Component Typeshunt trip

Complementary

Tightening Torque
3.5-3.5 N.m
Rated Voltage100-130 V AC/DC
