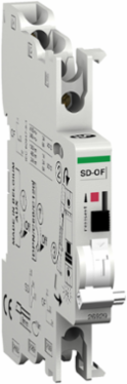

Schneider Electric M9A26929 Multi9 Double Auxiliary Contact 240/415 V AC, 24/130 V DC, 9 mm Width
- MPN: M9A26929
- PPN: SCH-M9A26929
CAD
$117.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Multi9 OF+SD/OF electric auxiliary is a double open/closed or fault indicator contact. It is dedicated to C60 UL/CSA/IEC, iID products. It provides a remote position open/close and/or fault tripping indication of the associated device. The In rated operational current is under 24VAC to 240VAC, 3A under 415VAC. The width in 9mm pitches is 1. The product color is white (RAL9003). The dimensions are (W) 9mm x (H) 90mm x (D) 73.5mm. Product weight is 38g. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Belgium
Depth73.5 mm
Physical Attributes
- Wire Stripping Length
- 9 mm for bottom connection
Complementary Attributes
- Line Rated Current
- 3-3 A at 415 V, AC 50/60 Hz, 6-6 A at <= 240 V, AC 50/60 Hz
Important Information Attributes
- Range Of Product
- GFP, C60BPR, C60BP, C60SP
- [Uc] Control Circuit Voltage
- 240...415 V AC 50/60 Hz, 24...130 V DC
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1505007EN
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Comb Busbar And Distribution Block Compatibility
- NO
- Mounting Mode
- fixed
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- Multi9
- Signal Contacts Composition
- 2 C/O
- Tightening Torque
- 1-1 N.m bottom
- Pep Code
- ENVPEP1505007EN
- Width Nominal
- 9 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Certificate AgencyUR, UL, CCC, PCT, CSA
Connections - Terminalsclamp terminal (bottom): 1 cable(s) 2.5-2.5 mm² (AWG 14) - rigid, clamp terminal (bottom): 2 cable(s) 1.5-1.5 mm² (AWG 16) - rigid
Local Publishable Date2025-07-09
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Eoli Availability DisplayYes
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1216
China Rohs In ScopeYes
Product Kit IdentifierN
Device Short NameSD + OF
Mounting SupportDIN rail
Product Or Component Typedouble OC or fault contact
ReturnabilityYes
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal90 mm
[Ui] Rated Insulation Voltage500 V
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)46 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C, -25-50 °C
- Take Back
- No
- Halogene Performance
- Product contains halogen above thresholds
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1505007EN
- Eu Rohs Directive
- Compliant
- Reach Free Of Svhc
- Yes
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
9 Mm Pitches1
Environmental DisclosureENVPEP1505007EN
Halogen Content PerformanceProduct contains halogen above thresholds
Pep CodeENVPEP1505007EN
General Attributes
- Range Of Product
- GFP, C60BPR, C60BP, C60SP
Product Or Component Typedouble OC or fault contact
ETIM
- ETIM 8
- EC001286
ETIM 9EC001286
