Multi9 OC Contact 1 C/O 240/415 V AC 24/130 V DC 9 mm Pitch
Schneider Electric

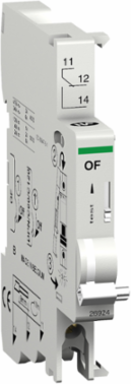

Schneider Electric M9A26924 Multi9 OC Contact 1 C/O 240/415 V AC 24/130 V DC 9 mm Pitch

  • MPN: M9A26924
  • PPN: SCH-M9A26924
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $24.89

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Acti9 OF electrical auxiliary is an open/close contact. It is dedicated to iD, C60, C120, DPN, DPN Vigi, C60H-DC, SW60-DC, C60PV-DC, C60NA-DC, C120NA-DC. This device includes an open/close contact OF to indicate the position of the circuit breaker. Emergency stoppage by normally open pushbutton. It provides a remote indication of the position of the associated device. The changeover contact indicates the open or closed position of the associated device. The width in 9mm pitches is 1. There is a test function on the toggle. The Un rated voltage is 24VAC to 415VAC or 24VAC to 130VDC. The operating frequency is 50Hz or 60Hz. The In rated operational current is 10mA up to 6A maximum depending on the rated voltage. The In rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The In rated operational current is under 24VAC to 240VAC, 3A under 415VAC. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards and with EN 62019-2 standard only for C120.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Belgium, Brazil, France, Mexico, United States
    Depth73.5 mm

    Physical Attributes

    Wire Stripping Length
    9 mm for bottom connection

    Complementary Attributes

    Line Rated Current
    3-3 A at 415 V, AC 50/60 Hz6-6 A at <= 240 V, AC 50/60 Hz

    Important Information Attributes

    Range Of Product
    C60SP, C60BPR, C60BP
    Connections - Terminals
    clamp terminal (bottom): 1 cable(s) 2.5-2.5 mm² (14 AWG) - rigid, clamp terminal (bottom): 2 cable(s) 1.5-1.5 mm² (16 AWG) - rigid
    Local Publishable Date
    2025-07-09
    Stocking Flag
    Y
    Serviceability
    No
    Field Service Division
    PPIBS
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    1216
    China Rohs In Scope
    Yes
    Product Kit Identifier
    N
    Device Short Name
    OF
    Mounting Support
    DIN rail
    Product Or Component Type
    OC contact
    Returnability
    Yes
    Sustainable Packaging
    No
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Height Nominal
    85 mm
    [Uc] Control Circuit Voltage
    240...415 V AC 50/60 Hz24...130 V DC
    [Uimp] Rated Impulse Withstand Voltage
    4 kV
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536509040
    Certificate AgencyCSA, UR, UL, CCC, PCT
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    TraceabilityNo
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1505007EN
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Comb Busbar And Distribution Block Compatibilitytop YES
    Mounting Modefixed
    Product AvailabilityStock - Normally stocked in distribution facility
    RangeMulti9
    Signal Contacts Composition1 C/O
    Tightening Torque1-1 N.m bottom
    Pep CodeENVPEP1505007EN
    Width Nominal9 mm
    [Ui] Rated Insulation Voltage500 V
    Halogen-free StatusProduct contains halogen above thresholds
    Package Weight(Lbs)37 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-50 °C, -25-50 °C
    Take Back
    No
    Halogene Performance
    Product contains halogen above thresholds
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI1505007EN
    Eu Rohs Directive
    Compliant
    Reach Free Of Svhc
    Yes
    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Reach Free ShvcYes
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    9 Mm Pitches1
    Environmental DisclosureENVPEP1505007EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Pep CodeENVPEP1505007EN

    General Attributes

    Range Of Product
    C60SP, C60BPR, C60BP
    Product Or Component TypeOC contact

    ETIM

    ETIM 8
    EC001286
    ETIM 9EC001286
