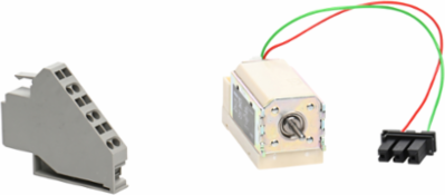

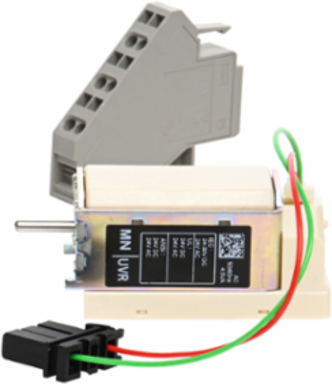

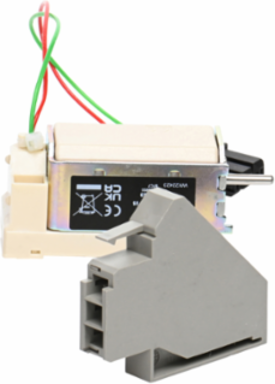

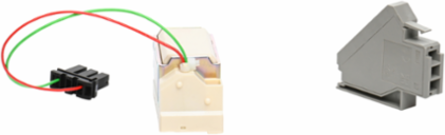

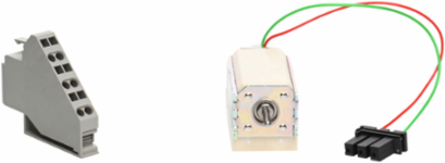

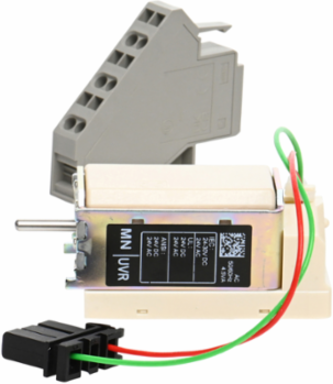

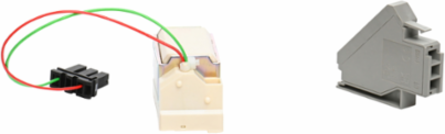

Square D S47380 MasterPacT NT/NW Undervoltage Trip Unit 24-30V AC/DC
- MPN: S47380
- UPC: 785901160328
- PPN: SCH-S47380
CAD
$566.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This is a undervoltage trip unit accessory for MasterPacT NT and NW circuit breakers. This is a trip unit accessory. This trip unit has a rated voltage for 24-30VAC. This product complies with UL and CSA standards. This trip unit has a tightening torque of 3.5 Nm.
