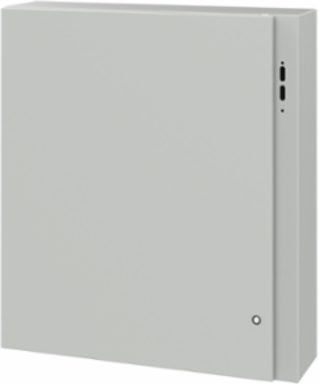

nVent Hoffman CDSC36328LG Concept Disconnect Enclosure Type 4, 36 Inch x 32 Inch x 8 Inch, Steel, Lt Gray
- MPN: CDSC36328LG
- UPC: 783510166199
- PPN: HOF-CDSC36328LG
- UNSPSC: 39121324
CAD
$1729.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Concept Disconnect Enclosures provide an extra level of visual ON or OFF indication. This Concept Disconnect Enclosure Type 4, CDSC36328LG item measures 36.00x32.00x8.00 inches with a material of Steel colored Lt Gray.
Features
- Seams continuously welded and ground smooth
- External-formed 90-degree body flange channels away liquids
- Bonding provision on door; grounding stud on body
- Holes in body for mounting disconnect operating handle and operating mechanism
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting for optional external mounting brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Corner-formed doors
- Provisions on door for optional high-impact thermoplastic data pocket
- Seamless foam-in-place gasket
- Door alignment device on doors wider than 30 inches (762mm)
- Concept-style latching system interlocks with the disconnect handle for added safety
- Unique integrated door handle with tool-to-open feature and padlocking option
- Self-grounding latch system with double seal
- Four hinges on 60-inch-high enclosures
- Simple easy-to-remove and install hinge pins with captivation clip
- High-torque threadless studs and fasteners on door
- V-shaped, fiber-wrapped gasket on the disconnect side of the body flange provides extra deflection of water
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 813
- Protection Rating
- NEMA Type 4
- Finish
- Powder Coated
- Body Thickness
- 1.9
- Mounting (G x H)
- 869 x 775
- Latch Type
- 2-Point
- NEMA Rating
- 4 Watertight
- Sub Brand
- Concept
- Size
- 36.00x32.00x8.00 in
Height (H)914
Depth (D)203
Product FamilyConcept
Color CodeRAL 7035
Door Thickness1.9
Latch Quantity1
IP RatingIP66
Weight85
MaterialSteel
ColorLtGray
