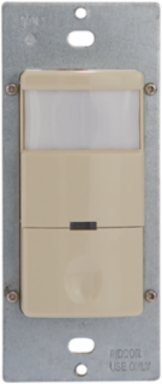

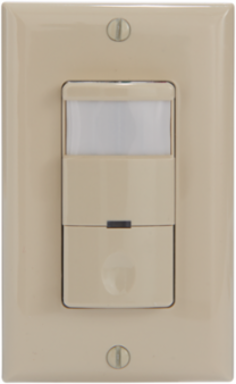

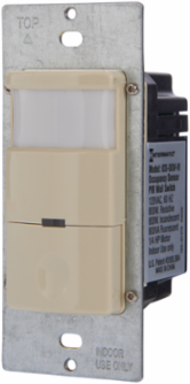

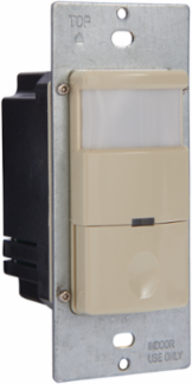

Intermatic IOS-DOV-IV Commercial Grade In-Wall PIR Occupancy/Vacancy Sensor, Ivory, 180° 1200ft² Coverage
- MPN: IOS-DOV-IV
- UPC: 078275125216
- PPN: INT-IOS-DOV-IV
- UNSPSC: 41111961
CAD
$59.56
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load ON and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns OFF automatically. The sensor switch has one relay (equal to single pole switch), it also includes Ambient Light Level Sensor.
Features
- Passive Infrared (PIR) sensing for presence detection
- Coverage: 180º, 1200 ft2 with non-obstructed views
- User-selectable Vacancy or Occupancy switch mode
- Zero-crossing technology for long life and performance
- Adjustable ambient light sensor override
- Incandescent/Fluorescent/CFL compatible
- IOS-DOV models require a neutral connection
- Fits standard decorator wall plate (included)
- Automatic ON/OFF Control
- Push button ON/OFF
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage Rating Range(s)
- 120/125 VAC, 60 Hz
- Color
- Ivory
- Marketing Description
- The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load ON and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns OFF automatically. The sensor switch has one relay (equal to single pole switch), it also includes Ambient Light Level Sensor.
- Width
- 1.313 in
- Country of Origin
- China
Warranty Period5-Year limited
ApplicationsIndoor Sensing Control
Height2.625 in
Depth1.75 in
