Weidmuller 1519340000 CH20M22 SET 2/3 BK/OR
- MPN: 1519340000
- PPN: WDM-1519340000
CAD
$113.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

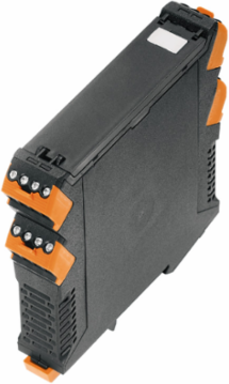

Electronics housing sample, OMNIMATE Housing - series CH20M black, Sample kit for developers, consisting of individual parts incl. female plug, Width: 22.5 mm
Specifications
System Characteristics
- Version
- Sample kit for developers, consisting of individual parts incl. female plug
- Number of connections
- 20
- Number of PCBs per module
- 1
- Type of contact to PCB
- Solder connection, direct
- Contact to terminal rail
- No
- Encapsulation option
- No
Type of connectionpluggable
Number of connection levels3
PCB thickness1.6 mm
Tolerance for the PCB shape±0.1 mm
Protection degreeIP20
Approvals
- ROHS
- Conform
Dimensions And Weights
- Length
- 119.2 mm
- Width
- 22.5 mm
- Height
- 113.6 mm
- Net weight
- 132 g
Length (inches)4.693 inch
Width (inches)0.886 inch
Height (inches)4.472 inch
Rated Data Acc. To Iec
- Rated current, max. number of poles (Tu=20°C)
- 10 A
- Rated voltage for surge voltage class / pollution degree II/2
- 400 V
- Rated voltage for surge voltage class / pollution degree III/3
- 250 V
- Rated impulse voltage for surge voltage class/ pollution degree III/2
- 4 kV
Rated current, max. number of poles (Tu=40°C)9 A
Rated voltage for surge voltage class / pollution degree III/2320 V
Rated impulse voltage for surge voltage class/ pollution degree II/2250 kV
Rated impulse voltage for surge voltage class/ contamination degree III/34 kV
Material Data
- Insulating material
- PA 66 GF 30
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 550
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 120 °C
Colourblack
Insulating material groupII
UL 94 flammability ratingV-0
Operating temperature, min.-40 °C
Classifications
- ETIM 6.0
- EC001031
- eClass 9.0
- 27-18-27-02
- eClass 10.0
- 27-18-27-02
ETIM 7.0EC001031
eClass 9.127-18-27-92
