Weidmuller 1519470000 CH20M45 SET 22/22 BK/OR

MPN: 1519470000
PPN: WDM-1519470000

$118.06

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

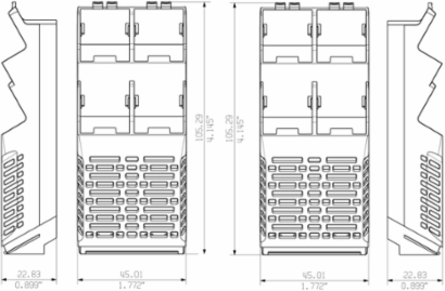

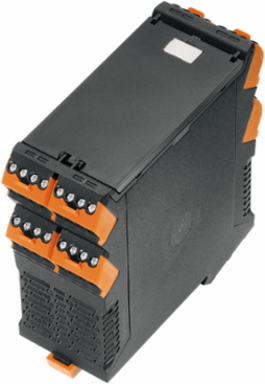

Electronics housing sample, OMNIMATE Housing - series CH20M black, Width: 45 mm

Documentation & Downloads

Specifications

System Characteristics

Type of connection	pluggable
Number of connection levels	2
PCB thickness	1.6 mm
Tolerance for the PCB shape	±0.1 mm
Protection degree	IP20

Number of connections	32
Number of PCBs per module	2
Type of contact to PCB	Solder connection, direct
Contact to terminal rail	No
Encapsulation option	No

Approvals

ROHS	Conform

Dimensions And Weights

Length	119.2 mm
Width	45 mm
Height	113.6 mm
Net weight	192.78 g

Length (inches)	4.693 inch
Width (inches)	1.772 inch
Height (inches)	4.472 inch

Rated Data Acc. To Iec

Rated current, max. number of poles (Tu=20°C)	10 A
Rated voltage for surge voltage class / pollution degree II/2	400 V
Rated voltage for surge voltage class / pollution degree III/3	250 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	4 kV

Rated current, max. number of poles (Tu=40°C)	9 A
Rated voltage for surge voltage class / pollution degree III/2	320 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	4 kV

Material Data

Insulating material	PA 66 GF 30
Colour chart (similar)	RAL 9011
Comparative Tracking Index (CTI)	≥ 550
Max. relative humidity during storage	80 %
Operating temperature, max.	120 °C
