Weidmuller 1519380000 CH20M45 SET 11/11 BK/OR
- MPN: 1519380000
- PPN: WDM-1519380000
CAD
$123.96
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

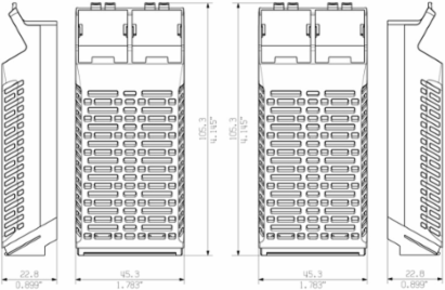

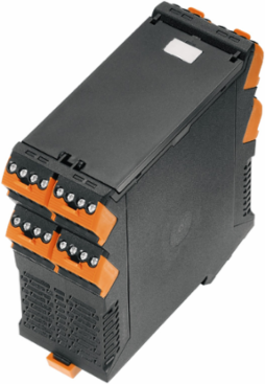

Electronics housing sample, OMNIMATE Housing - series CH20M black, Width: 45 mm
Documentation & Downloads
Specifications
System Characteristics
- Type of connection
- pluggable
- Number of connection levels
- 1
- PCB thickness
- 1.6 mm
- Tolerance for the PCB shape
- ±0.1 mm
- Protection degree
- IP20
Number of connections16
Number of PCBs per module2
Type of contact to PCBSolder connection, direct
Contact to terminal railNo
Encapsulation optionNo
Approvals
- ROHS
- Conform
Dimensions And Weights
- Length
- 119.2 mm
- Width
- 45 mm
- Height
- 113.6 mm
- Net weight
- 151.7 g
Length (inches)4.693 inch
Width (inches)1.772 inch
Height (inches)4.472 inch
Rated Data Acc. To Iec
- Rated current, max. number of poles (Tu=20°C)
- 10 A
- Rated voltage for surge voltage class / pollution degree II/2
- 400 V
- Rated voltage for surge voltage class / pollution degree III/3
- 250 V
- Rated impulse voltage for surge voltage class/ pollution degree III/2
- 4 kV
Rated current, max. number of poles (Tu=40°C)9 A
Rated voltage for surge voltage class / pollution degree III/2320 V
Rated impulse voltage for surge voltage class/ pollution degree II/24 kV
Rated impulse voltage for surge voltage class/ contamination degree III/34 kV
Material Data
- Insulating material
- PA 66 GF 30
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 550
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 120 °C
Colourblack
Insulating material groupII
UL 94 flammability ratingV-0
Operating temperature, min.-40 °C
Classifications
- ETIM 6.0
- EC001031
- eClass 9.0
- 27-18-27-02
- eClass 10.0
- 27-18-27-02
ETIM 7.0EC001031
eClass 9.127-18-27-92
