Klein Tools 1656-60H Chicago Grip 0.96 Inch Capacity, 8000 lb Safe Load, Round Jaw, 5.5 Inch Length

MPN: 1656-60H
UPC: 092644471186
PPN: KLT-1656-60H
UNSPSC: 46182308

$974.95

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

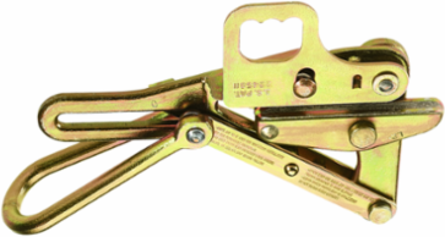

Klein Tools 1656 Series Chicago Grips have a round, smooth inside jaw contour making it perfect for work with stranded copper cables. These smooth jaws grip with maximum contact and are less likely to cause cable deformation. This grip also has a hot-line latch designed for placing a grip on a cable with a hot-line stick. The three notches in the hot-line latch adjust the balance of the grip to better match the direction of the cable sag. Grips are rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

Hot-line grips for both bare and insulated conductors
Grip may be placed on wire with hot-line stick
When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire
Standard hot-line grips are not supplied with springs or lock-open features
Made in USA
When springs or lock-open features are desired, add prefix letter ''S'' before catalog number (example: S1684-5H)

Documentation & Downloads

Specifications

Additional

Maximum Safe Load	8000 lb (3629 kg)
Jaw Length	5.5 in (14 cm)
Depth	12.5 in
Height	2 in
Jaw Type	Round
Teeth Type	Smooth
Material	Steel
Type	Chicago Grip
Swing Latch	No

Cable Diameter Range	0.86 to 0.96 in (21.84 to 24.38 mm)
Cable Type	ACSR, AAC, Copper
Width	7.75 in
Weight	0.1 lb
Locking Handle	Yes
Hot Latch	Yes
Application	Wire Pulling
Spring	No
Country of Origin	USA
