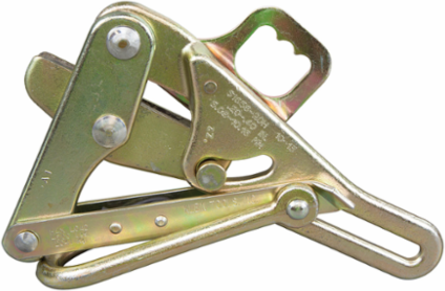

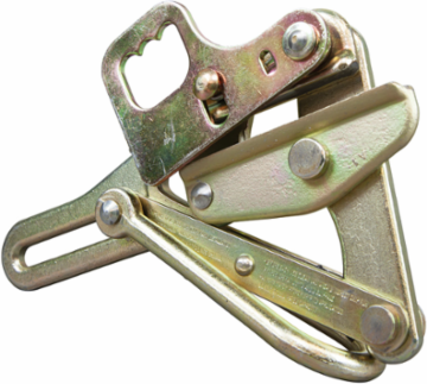

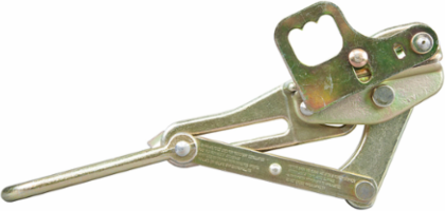

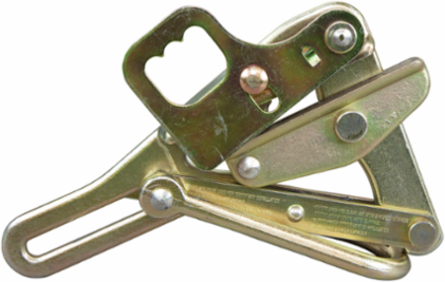

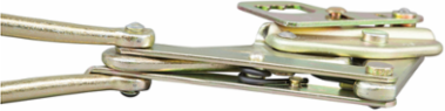

Klein Tools S1656-20H Chicago Grip with Hot-Line Latch, 0.20 to 0.40 Inch Cable Diameter, 4-3/16 Inch Jaw Length, 4500 lb Max Load

  • MPN: S1656-20H
  • UPC: 092644471063
  • PPN: KLT-S1656-20H
  • UNSPSC: 46182308

CAD

$622.62

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors is for both bare and insulated conductors. The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire.

Features

  • The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors has round inside-jaw contour
  • Jaw length: 4-3/16-Inch
  • Maximum safe load of 4,500 pounds
  • Standard hot-line grips are not supplied with springs or lock-open features
  • Made in USA
  • Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product

Documentation & Downloads

Specifications

Key Specifications

Type
Chicago Grip
Application
Wire Pulling
Cable Type
Copper, ACSR, AAC
Locking Handle
Yes
Spring
Yes
Teeth Type
Smooth
Overall Length (cm)
31.8
Jaw Length (cm)
10.2
Jaw Length (Inch)
4
Maximum Safe Load (lb)
4500
Overall Width (cm)
5.4
Width
6.0000 in
Weight
0.1000 lbs
MaterialSteel
Cable Diameter0.2" to 0.4" (5.08 to 10.16 mm)
Jaw TypeRound
Hot LatchYes
Swing LatchNo
Weight (kg)1.4
Overall Width (Inch)2.13
Maximum Safe Load (kg)2041.2
Overall Length (Inch)12.5
Weight (lb)3.15
Height2.0000 in
Depth8.0000 in
