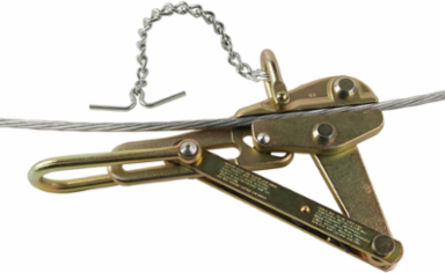

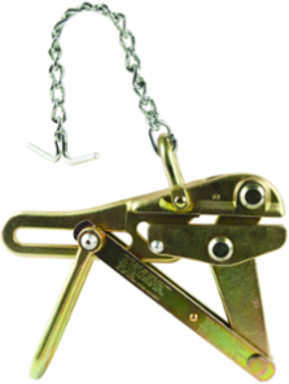

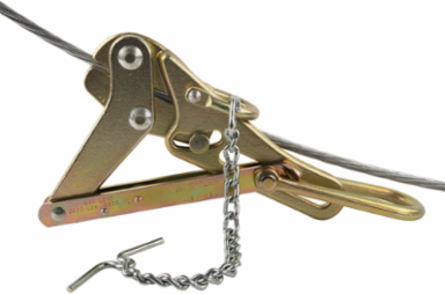

Klein Tools 16845CAT Chicago Grip Coated Guy Wire, 5 Inch Jaw, 8000 lb Load Capacity

Chicago Grip Coated Guy Wire, 5 Inch Jaw, 8000 lb Load Capacity
Chicago Grip Coated Guy Wire, 5 Inch Jaw, 8000 lb Load Capacity
Chicago Grip Coated Guy Wire, 5 Inch Jaw, 8000 lb Load Capacity
  • MPN: 16845CAT
  • UPC: 092644470707
  • PPN: KLT-16845CAT
  • UNSPSC: 46182308

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1347.77/ EA

Description

This Chicago Grip is designed specifically to work with coated guy strand and EHS cable. Klein grips are made of drop-forged, quality US steel and heat treated for strength and durability. The chain, toggle and shackle keep the grip from falling off the cable. The 5-Inch jaw length increases the surface area contact with the cable minimizing cable damage. The sawtooth jaw profile resists galvanization build-up.

Features

  • Aggressive sawtooth jaw profile resists build-up from galvanized coating on guy strand and EHS cables
  • Equipped with chain, toggle and shackle to keep grip from falling off the cable
  • Designed for cable sizes 0.218 to 0.55-Inch (5.54 to 13.97 mm)
  • 5-Inch (127 mm) jaw length for extra gripping area on stranded cable and spring that closes grip on cable helping to maintain initial position
  • Made in USA
  • Locking handle keeps jaw open while grip is placed on cable with a hot stick
  • Maximum Safe Load is 8000-Pound (3629 kg)
  • Equipped With a Chain, Toggle and Shackle

Specifications

Specifications

Spring
Yes
Overall Width
7.6" (19.3 cm)
Material
Steel
Jaw Type
Round
Overall Height
2.5" (6.4 cm)
Maximum Safe Load
8000 lb (3629 kg)
Cable Diameter
0.218" to 0.55" (5.54 to 13.97 mm)
Swing Latch
No
Height
2.5000 in
Depth
13.3000 in
ApplicationWire Pulling
Jaw Length5" (12.7 cm)
Overall Length13.3" (33.8 cm)
TypeChicago Grip
Locking HandleYes
Hot LatchNo
Cable TypeAircraft, EHS, Messenger, Guy Strand
Teeth TypeAggressive
Width7.6000 in
Weight6.0000 lbs
