Klein Tools RT390 Circuit Analyzer 135V AC with Large LCD, Tests AFCI/GFCI, Voltage Drop, 12A/15A/20A
- MPN: RT390
- UPC: 092644693632
- PPN: KLT-RT390
- UNSPSC: 41113642
CAD
$216.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

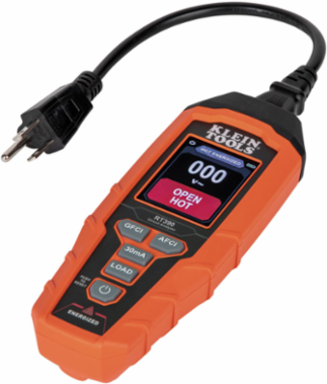

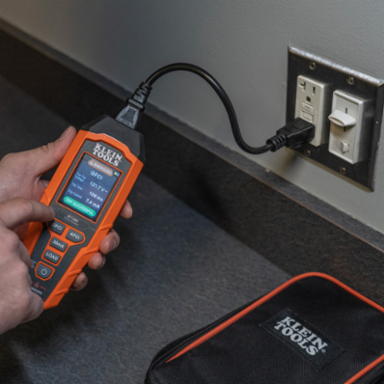

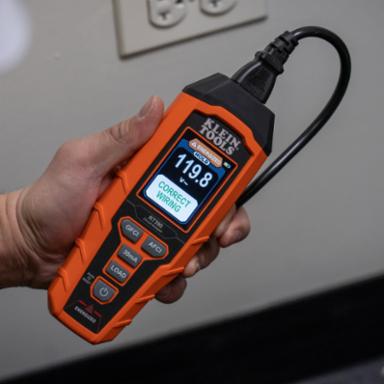

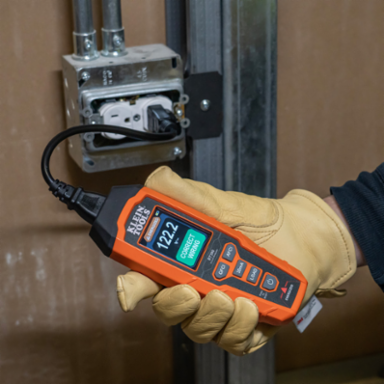

The Klein Tools RT390 is a Circuit Analyzer that tests the wiring conditions at an electrical outlet, displays AC line voltage, inspects AFCI and GFCI devices with time to trip device, and performs voltage drop tests at 12A, 15A and 20A current loads. Results are easy to understand with large, color LCD. The tester is designed for use with North American 120V AC 3-wire electrical outlets.
Features

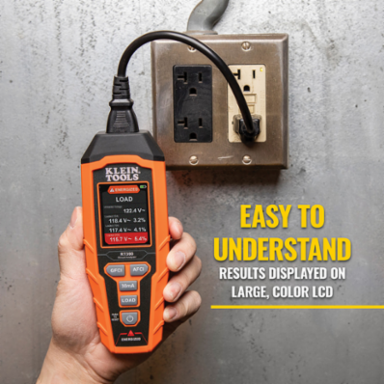

- Circuit Analyzer with large color LCD displays easy to understand results for wiring faults, AFCI, GFCI, voltage drops and time to trip devices
- Detect and identify common wiring faults in standard, AFCI and GFCI electrical outlets
- Detects dual (open neutral/open ground) wiring faults
- Inspect AFCI and GFCI devices; includes trip time and trip current
- 12A, 15A, and 20A load testing to measure percentage voltage drops
- Powers off automatically after 5 minutes of inactivity to conserve battery life

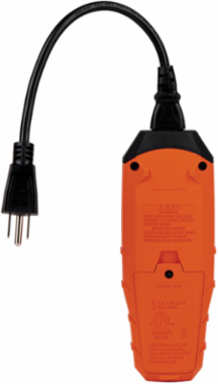

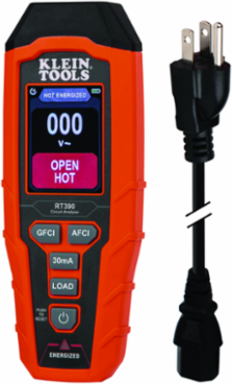

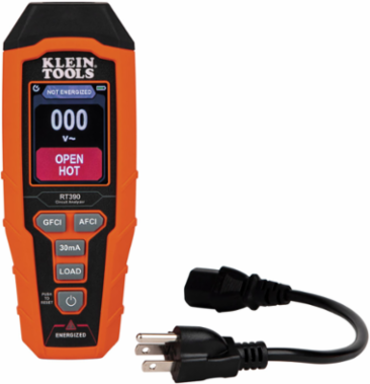

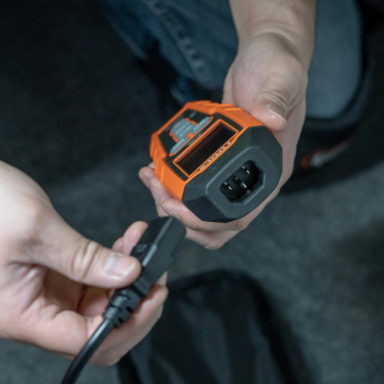

- Detachable cord for easy storage
- For use with North American 120V AC 3-wire electrical outlets
- Safety Rating: CAT III 135V
- Tests AFCI and GFCI, Large LCD Display, Detects Dual-Open Wiring Fault, Shows Amount of Time it Takes to Trip GFCI
Documentation & Downloads
Specifications
Key Specifications
- Included

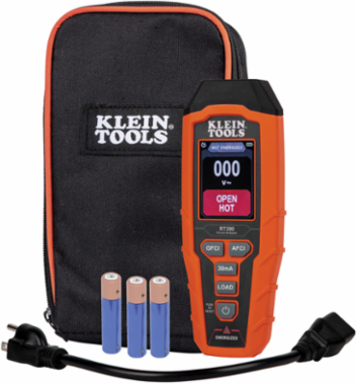

- Circuit Analyzer; 3 x AAA Batteries; Instructions; and Pouch
- Standard
- CAT III 135V
- Voltage
- 135V AC
- Material
- ABS Plastic, Overmold, Electronic Components
- Drop Protection
- 6.6' (2m)
- Overall Width (Inch)
- 2.7
- Weight (oz)
- 10.9
- Overall Length (Inch)
- 1.5
- Weight (g)
- 309
- Height
- 1.5080 in
- Depth
- 7.0720 in
AFCIYes
TypeCircuit Analyzer
Batteries3 x AAA Alkaline
GFCIYes
ApplicationTest Wiring Faults, Inspects AFCI and GFCI Devices, Displays Line Voltage, Voltage Drop
Overall Width (cm)6.9
Overall Height (cm)18
Overall Height (Inch)7.1
Overall Length (cm)3.8
Width2.7200 in
Weight0.4880 lbs
