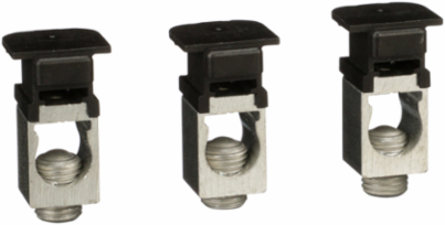

Square D AL150HD PowerPacT H Circuit Breaker Lug Kit, 15A-150A, 500 kcmil, Aluminum
- MPN: AL150HD
- UPC: 785901841067
- PPN: SCH-AL150HD
CAD
$154.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The M-frame, P-frame circuit breakers have mechanical lugs standard on both ends of the unit-mounted circuit breakers. The M-frame and P-frame I-Line™ circuit breakers have mechanical lugs standard on the O/OFF end only. These lugs are suitable for use with copper or aluminum wire. Rear connectors, compression lugs and distribution lugs are available for special applications. Copper mechanical lugs are available for use with copper wire only. These lugs can be factory installed by adding an "LC" suffix, to the circuit breaker catalog number for standard copper lugs and "LD" suffix, for high-amp copper lugs (M-frame, P-frame circuit breakers only). This mechanical lughas a rated current of 1200A and material made of aluminium. This lug kit is rated at 500 kcmil. The mechanical lug kit complys to CSA & UL standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Complementary Attributes
- Line Rated Current
- 150-400 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Location Of Connection
- downstream, upstream
- Range Of Product
- PowerPact H, PowerPact J, PowerPact L
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Traceability
- No
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1905
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Number Of Poles
- 3P
- Product Or Component Type
- mechanical lug
- Returnability
- Yes
- Tightening Torque
- 5-5 N.m 2.5-6 mm² (14 AWG...10 AWG)
- Width Nominal
- .874 in
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 45.359 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mounting Modeunit mount, I-Line
Certificate AgencyUL, CSA
Local Publishable Date2026-04-10
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge14 AWG...3/0 AWG aluminium/copper
Materialaluminium
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 3
Sustainable PackagingNo
Height Nominal1.40 in
Accessory / Separate Part Categoryconnection accessory
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536908585
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Halogen free product
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free product
- Packaging Without Single Use Plastic
- No
Take BackNo
Recycled Metal Content At Cr Level0 %
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Range Of Product
- PowerPact H, PowerPact J, PowerPact L
Product Or Component Typemechanical lug
ETIM
- ETIM 8
- EC000490
ETIM 9EC000490
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
