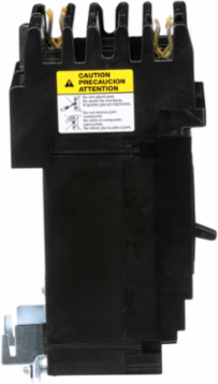

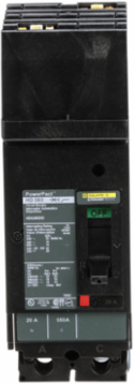

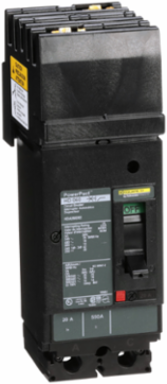

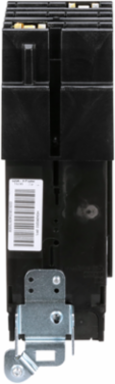

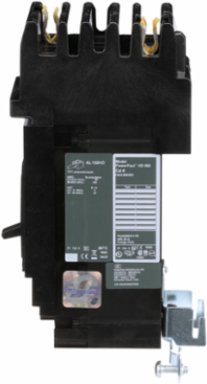

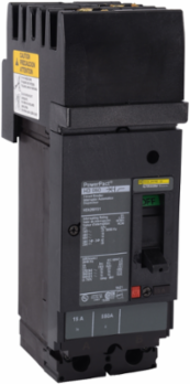

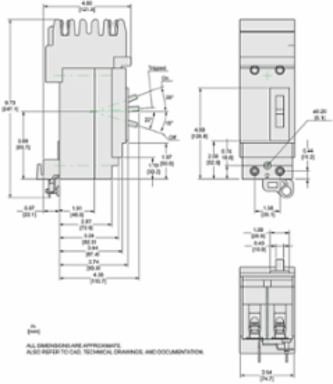

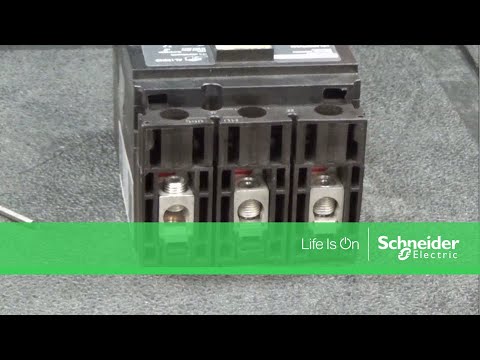

Square D HDA260202 PowerPact H Circuit Breaker 20A 2P 600VAC Thermal-Magnetic 80%

MPN: HDA260202
UPC: 785901416371
PPN: SCH-HDA260202

CAD

$1554.43

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 20A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin: Mexico, United States

Depth86 mm

Communications & Management Attributes

Communication Interface: Modbus, Ethernet

Physical Attributes

Color: Black

Wire Stripping Length16 mm

Complementary Attributes

Line Rated Current: 20-20 A

Important Information Attributes

Persona Type Ids: LC, OM, OM8, PB

Market Segmentation Id: COMMERCIAL, INDUSTRIAL

Electrical Connection: I-Line connection, line, lugs, load

Tightening Torque: 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10), 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)

[Ics] Rated Service Breaking Capacity: 25 kA 220/240 V AC 50/60 Hz IEC 60947-2, 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 14 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2

Carbon Footprint Of The End-of-life Phase [C1 To C4]: 4 kg CO2 eq., 3.534081131815963

Carbon Footprint Of The Manufacturing Phase [A1 To A3]: 10 kg CO2 eq., 9.617996840861043

Local Data Status: Publishable

Return Indicator: N

Stock Policy: 2

Serviceability: No

Field Service Division: PPIBS

Weee Scope: In

Scope Perimeter: Outside of Europe

End Of Life Doc Ref: ENVEOLI2206027_V2

Reach Full Compliance Status Id: CONTAINS_SVHC

Rohs Eur In Scope: Yes

Rohs Eur Conformity Date: 2539

China Rohs In Scope: Yes

With Recycled Cardboard: Yes

Product Contributes To Saved And Avoided Emissions: No

Tier: 1

Function Option: Standard

Awg Gauge: AWG 14...AWG 3/0 aluminium/copper terminal

Continuous Current Rating: 80 %

Device Application: distribution

Local Signalling: switched off (OFF) 1 trip indicator green)

Magnetic Tripping Current: 750-750 A

Mounting Support: bracket

Number Of Poles: 2P

Product Availability: Non-Stock - Not normally stocked in distribution facility

Product Or Component Type: circuit breaker

Quality Labels: CE

Range: PowerPact

Software Version: v6.2.4

Sustainable Packaging: No

Total Lifecycle Carbon Footprint: 130 kg CO2 eq.

Utilisation Category: category A

Database Version: 2024-01

Pcr Version: PEP-PCR-ed4-2021 09 06

Type Of Verification For The Pep: Independent external review

Functional-unit Description: Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.

Functional-unit Unit: unit

Energy Consumption On Product Lifetime, In Kwh: 241.776

Energy Model - Installation [A5]: No energy used

Energy Model - End Of Life [C1-c4]: Global, European and French datasets are used.

Height Nominal: 163 mm

[Ue] Rated Operational Voltage: 690 V AC 50/60 Hz IEC 60947-3

[Uimp] Rated Impulse Withstand Voltage: 8 kV IEC 60947-2

Package Weight(Lbs): 1.890 kg

Warranty (In Months): 18

Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder

Market SegmentationCommercial, Industrial

Number Of Slots2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in), 1 overcurrent trip switch SDE plug-in), 1 voltage release MN or MX plug-in)

Certificate AgencyUL, CSA, NOM

Carbon Footprint Of The Distribution Phase [A4]0.3972663555025503, 0.4 kg CO2 eq.

Carbon Footprint Of The Installation Phase [A5]0.019036034197117583, 0 kg CO2 eq.

Carbon Footprint Of The Use Phase [B2, B3, B4, B6]116 kg CO2 eq., 116.49117556127594

Local Publishable Date2025-11-13

Stocking FlagY

Device TypeLV equipment - Low voltage circuit breaker

TraceabilityYes

Average Life Duration15 year(s)

Weee Product Category4

Eoli Availability DisplayYes

Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold

Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold

Rohs Eur StatusCompliant By Exemption

Rohs Eur Full Compliance StatusCompliant By Exemption

China Rohs Label7

Without Single Use PlasticYes

Tier Id1

Function Option IdSTANDARD

Product Kit IdentifierN

Circuit Breaker ApplicationHACR rated

Control Typetoggle

Energy Efficiency OptimizedFalse

Magnetic Hold Current350 A

Mounting ModeI-Line bracket)

Network Frequency50/60 Hz

Phase ConnectionAC

Product NamePowerPact H

Protected Poles Description2t

Quantity Per Set1

ReturnabilityNo

Suitability For Isolationyes IEC 60947-2

Terminal IdentifierAL150HD

Trip Unit Technologythermal-magnetic

Pep CodeENVPEP2206027EN

Pep Verification Date2025-05-01

Psr VersionPSR-0005-ed3-2023 12 08

Data Sourceextrapolated product

Functional-unit Quantity1

Reference Lifetime, In Y20

Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US

Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US

Recyclability Potential, In %45

Width Nominal104 mm

[Ui] Rated Insulation Voltage750 V IEC 60947-2

Nbr. Of Units In Pkg.1

Take-backNo

Environment Attributes Main

Ambient Air Temperature For Operation: -25-70 °C, -25-70 °C

Operating Altitude: < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating
