Square D

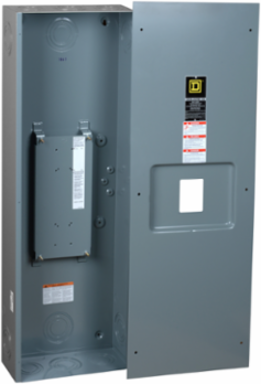

Square D LA400F Circuit breaker enclosure, LA, 125A to 400A, NEMA 1, flush mount

Circuit breaker enclosure, LA, 125A to 400A, NEMA 1, flush mount
  • MPN: LA400F
  • UPC: 785901508007
  • PPN: SCH-LA400F

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1178.14/ EA

Description

Circuit breaker enclosure, LA, 125A to 400A, NEMA 1, flush mount

Specifications

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1408006EN
Pvc Free
Yes
Eu Rohs Directive
Compliant
Halogen Content Performance
Halogen free plastic parts product
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold

Specifications

Circuit Breaker Type
LAL || Q4L || LHL
Product Destinationcircuit breaker LAL/LHL/Q4L 3P || circuit breaker LAL/LHL/Q4L 2P

Complementary

[In] Rated Current
125-400 A
Device Mounting
flush
Enclosure Material
steel
Depth
184 mm
Height1073 mm
Poles Description3P || 2P
Width349 mm

Environment

Product Certifications
UL || CSA

Downloads
