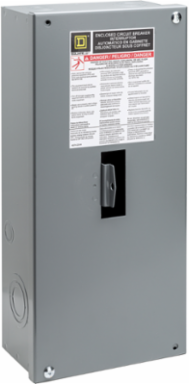

Square D HD100S PowerPacT H Circuit Breaker Enclosure, 15-100A, 3 Pole, NEMA 1, Steel
- MPN: HD100S
- UPC: 785901472797
- PPN: SCH-HD100S
- UNSPSC: 39121318
CAD
$434.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Industrial and residential Square D circuit breaker enclosures designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Provides a dead front housing for PowerPact H circuit breakers, molded case switches, and motor circuit protectors to prevent personnel from accidentally contacting energized parts. Enclosure accepts 3 pole PowerPacT H breakers that have a current rating of 15 to 100A. This enclosure is NEMA 1 rated enclosure and is surface mounted. The enclosure has a knockout that allows access to breaker front controls without opening enclosure. The short circuit current rating of the enclosure is equal to the rating of the circuit breaker installed which allow HD circuit breakers. The device has a height of 17 inch, width of 7.9 inch and depth of 4.75 inch. It is UL 489 Listed and CSA certified. Complies with NEC 240.30. cULus listed. Protect breaker from physical damage. Allow breaker operation without removing cover
Features
- PowerPacT H circuit breaker enclosure 15 to 100A rated
- NEMA type 1 surface enclosure for indoor general purporse applications
- Enclosure assepts HDL 3 poles only circuit breakers
- The short circuit current rating of the enclosed circuit breaker is equal to the rating of the circuit breaker installed
- Circuit breakers are ordered and shipped separately for field installation
- The enclosures are not compatible with earth-leakage or ground-fault modules.
- H-frame circuit breakers with MicroLogic trip units can be used with these enclosures with some limitations.
- PowerPacT H Type 1, 3, 4X and 12 enclosures are UL Listed to UL489 and CSA C22.2 No.5
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Depth | 120.7 mm |
|---|
Complementary Attributes
| Line Rated Current | 15-100 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | CSA, UL |
| Local Publishable Date | 2025-11-13 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2539 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Standard |
| Circuit Breaker Type | HDL |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Height Nominal | 431.8 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Enclosure Material | steel |
| Number Of Poles | 3P |
| Product Destination | circuit breaker H-Frame 3P |
| Sustainable Packaging | No |
| Width Nominal | 200.7 mm |
| Customs Code | 7326908688 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Nema Degree Of Protection | NEMA 1 |
| Packaging Without Single Use Plastic | No |
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
