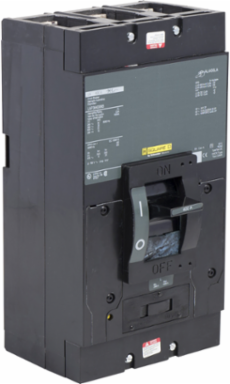

Square D LAP36400MB Circuit Breaker 400A 3-Pole 600VAC Short Handle
- MPN: LAP36400MB
- UPC: 785901650386
- PPN: SCH-LAP36400MB
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D FA/LA Molded Case Circuit Breakers is designed to protect electrical systems from damage caused by overloads. For distribution systems supplied by transformers and distribution systems supplied by engine generator sets.
Documentation & Downloads
Specifications
Key Specifications
- Trip Unit Technology
- magnetic
Product Or Component Typecircuit breaker
Complementary
- Circuit Breaker Application
- HACR rated
- Height
- 11 in
- Breaking Capacity Code
- A
- Poles Description
- 3P
- [In] Rated Current
- 400 A
- Wiring Configuration
- 3-wire
- Depth
- 5.84 in
Terminal IdentifierAL400LA
Mounting Modeunit mount
Magnetic Tripping Current4000-4000 A
Operator Profileshort lever
Width6 in
Electrical Connectionlugs, load || terminal, line
Magnetic Hold Current2000 A
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1410004EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free plastic parts product
Environment
- Product Certifications
- IEC || CSA || UL listed
