Circuit Breaker 125A 3 Pole 600VAC 22kA Lugs Short Handle 5.84 Inch Depth
Square D

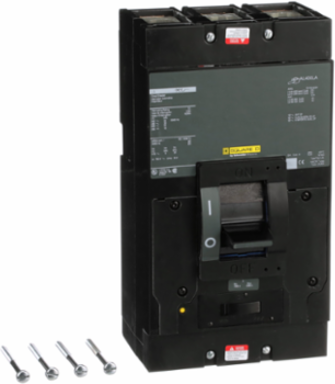

Square D LAL36125MB Circuit Breaker 125A 3 Pole 600VAC 22kA Lugs Short Handle 5.84 Inch Depth

  • MPN: LAL36125MB
  • UPC: 785901404361
  • PPN: SCH-LAL36125MB
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Engineered for robust power distribution, this 125A 3-pole circuit breaker from Schneider Electric is designed to handle up to 600VAC with a breaking capacity of 22kA. Its molded case construction ensures reliable operation while providing essential thermal and magnetic protection for your electrical systems. The compact design, featuring a short handle and a depth of 5.84 inches, allows for easy installation and integration into various electrical panels. With its durable build and high performance, this circuit breaker is a vital component for ensuring the safety and efficiency of any industrial power distribution setup.

Documentation & Downloads

Specifications

Additional

Amperage
125 A
Breaking Capacity
22 kA
Magnetic Tripping Current
1250 A
Number of Poles
3P
Electrical Connection
Lugs, line, load
Mounting Mode
Unit mount
Wire Size Range
42–304 mm² (AWG 1–600 kcmil), 42–127 mm² (AWG 1–250 kcmil)
Width
6 in (152.4 mm)
Circuit Breaker Application
HACR rated
Product Certifications
IEC, CSA, UL Listed
Sustainable Offer Status
Green Premium Product
Mercury Free
Yes
Country of Origin
Mexico
Voltage600 VAC, 250 VDC
Short-Circuit Current Rating10 kA
Magnetic Hold Current625 A
Trip Unit TechnologyThermal-magnetic
OperatorShort lever
Tightening Torque13 N·m
Height11 in (279.4 mm)
Depth5.84 in (148.34 mm)
MaterialNot specified
PVC FreeYes
RoHS ComplianceCompliant with Exemptions
Halogen Content PerformanceHalogen free plastic parts
