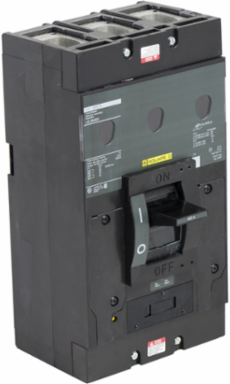

Square D LAL36400V Circuit Breaker 400A 3 Pole 600VAC 22kA with Lugs and Visi-blade
- MPN: LAL36400V
- UPC: 785901358343
- PPN: SCH-LAL36400V
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for robust electrical protection, this circuit breaker from Schneider Electric is designed to handle demanding power distribution applications. With a substantial capacity of 400A and a three-pole configuration, it operates effectively at 600VAC, making it a reliable choice for various industrial settings. The integrated Visi-blade feature offers enhanced visibility of the breaker’s status, while the included lugs ensure efficient and secure connections. This combination of functionality and design makes it an essential component for ensuring safe and effective power management in high-load environments.
Documentation & Downloads
Specifications
Additional
- Amperage
- 400 A
- Interrupt Rating
- 22 kA
- Trip Unit Technology
- Thermal-magnetic
- Magnetic Tripping Current
- 4000 A
- Number of Poles
- 3P
- Tightening Torque
- 13 N.m (42-304 mm² AWG 1...600 kcmil), 13 N.m (42-127 mm² AWG 1...250 kcmil)
- Depth
- 5.84 in
- Electrical Connection
- Lugs, load; Lugs, line
- RoHS Compliance
- Compliant with Exemptions
- PVC Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Environmental Disclosure
- ENVPEP1410004EN
- Reach Regulation
- Contains SVHCs above threshold
- Warranty
- 18 months
Voltage600 VAC
DC Interrupt Rating10 kA 250 VDC
Magnetic Hold Current2000 A
Circuit Breaker ApplicationHACR rated
Mounting ModeUnit mount
Width6 in
Height11 in
Product CertificationsCSA, UL Listed, IEC
Mercury FreeYes
Halogen Content PerformanceHalogen free plastic parts product
Terminal IdentifierAL400LA
China RoHS RegulationOut of China RoHS scope
Product Or Component TypeCircuit breaker
