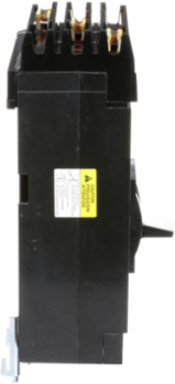

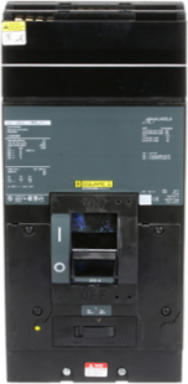

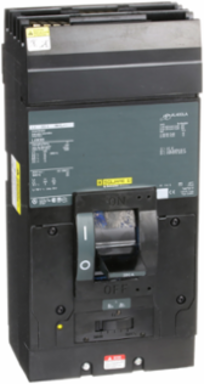

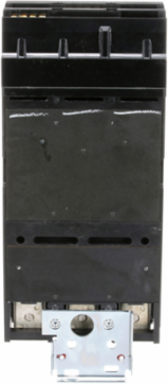

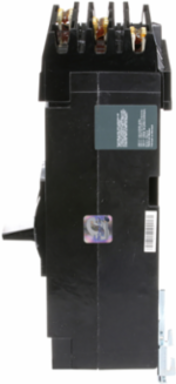

Square D LA36300 Circuit breaker, LA, 300A, 3 pole, 600VAC, 22kA, 250VDC, I-Line mount, thermal magnetic

Circuit breaker, LA, 300A, 3 pole, 600VAC, 22kA, 250VDC, I-Line mount, thermal magnetic
Circuit breaker, LA, 300A, 3 pole, 600VAC, 22kA, 250VDC, I-Line mount, thermal magnetic
Circuit breaker, LA, 300A, 3 pole, 600VAC, 22kA, 250VDC, I-Line mount, thermal magnetic
Circuit breaker, LA, 300A, 3 pole, 600VAC, 22kA, 250VDC, I-Line mount, thermal magnetic
Circuit breaker, LA, 300A, 3 pole, 600VAC, 22kA, 250VDC, I-Line mount, thermal magnetic
  • MPN: LA36300
  • UPC: 785901426240
  • PPN: SCH-LA36300

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Description

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. I-Line circuit breakers, with their exclusive bus connection design, provide superior reliability and performance advantages. A wide variety of accessories are available for field or factory installation of I-Line panelboards. This I-Line, 3P, circuit breaker has a 300A rated current. This breaker has a breaking capacity of 22 kA@600 VAC operation voltage. This breaker has a thermal-magnetic trip technology. The dimensions are 11 in (H), 6 in (W), 5.84 in (D).

Specifications

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1410004EN
Pvc Free
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free plastic parts product

Complementary

Circuit Breaker Application
HACR rated
Height
11 in
Breaking Capacity Code
A
Poles Description
3P
Width
6 in
Electrical Connection
lugs, load || I-Line connection, line
Magnetic Hold Current
1500 A
Terminal IdentifierAL400LA
Mounting ModeI-Line
Magnetic Tripping Current3000-3000 A
[In] Rated Current300 A
Wiring Configuration3-wire
Depth5.84 in

Specifications

Trip Unit Technology
thermal-magnetic
Product Or Component Typecircuit breaker

Environment

Product Certifications
UL listed || CSA
