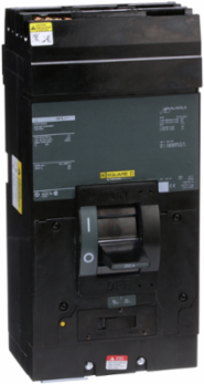

Square D LA36150 Circuit breaker, LA, 150A, 3 pole, 600VAC, 22kA, 250VDC, I-Line mount, thermal magnetic
Square D LA36150 Circuit breaker, LA, 150A, 3 pole, 600VAC, 22kA, 250VDC, I-Line mount, thermal magnetic
- MPN: LA36150
- UPC: 785901339274
- PPN: SCH-LA36150
- UNSPSC: 39121616
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Square D LA molded case circuit breakers provide basic thermal magnetic protection. Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions. LA circuit breaker could be used for muliple applications such as construction, in commercial and industrail buildings, for control equipment panels for OEM commercial and even in mines. This 3 poles I-line plug in circuit breaker is equiped with thermal magnetic trip unit with rated current of 150A and voltage of 600VAC. Breaker has an interrapting rating as 22kA at 600VAC, 10kA at 250VDC All LA molded case circuit breakers have trip indication as operating handle being in central position when the breaker is tripped. This circuit breakers are commonly used in I-line combo panel with terminal wire range for AL400LA as 1 wire AWG 1 to 600 kcmil or 2 wires AWG 1 to 250 kcmil aluminium or coopper. LA breakers are UL 489, CSA, IEC certified.
Features
- Available in 2 and 3 pole design
- Protection from overloads and short circuits
- Automatic molded case switches available
- Unit mount, I-Line and rear connect constructions
- UL 489, CSA, IEC certified
- Circuit breaker has factory installed UL listed mechanical aluminum alloy suitable for aluminum or copper wire.
Specifications
Conformance Attributes
- Product Certifications
- CSA, UL Listed
Complementary Attributes
- Line Rated Current
- 150 A
Important Information Attributes
- Electrical Connection
- lugs, load, I-Line connection, line
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 12 kg CO2 eq., 11.67639778652332
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 50 kg CO2 eq., 49.671357924070975
- Local Data Status
- Publishable
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2206029_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Circuit Breaker Application
- HACR rated
- Halogen Free Status
- Halogen free plastic parts product
- Magnetic Tripping Current
- 1500-1500 A
- Package Weight Lbs
- 8.2 kg
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Terminal Identifier
- AL400LA
- Trip Unit Technology
- thermal-magnetic
- Medium Desc
- Circuit breaker, LA, 150A, 3 pole, 600VAC, 22kA, 250VDC, I-Line mount, thermal magnetic
- Product Kit Identifier
- N
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; United States, US
- Global Commercial Status
- Commercialised
Carbon Footprint Of The Distribution Phase A42.228383327123949, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A52.1496401101385745, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6739 kg CO2 eq., 739.3949682892573
Local Publishable Date2025-11-18
ServiceabilityNo
Field Service DivisionPPIBS
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Energy Efficiency OptimizedFalse
Magnetic Hold Current750 A
Mounting ModeI-Line
Poles Description3P
Product Or Component Typecircuit breaker
Sustainable PackagingYes
Total Lifecycle Carbon Footprint805 kg CO2 eq.
Wiring Configuration3-wire
Stocking FlagY
Pep CodeENVPEP2206029EN
Pep Verification Date2028-04-08
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2206029_V2
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2206029EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Halogene PerformanceHalogen free plastic parts product
China ROHS RegulationX
Carbon Footprint805.1207474371142
Environmental DisclosureENVPEP2206029EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2028-04-08
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 5.84 in
