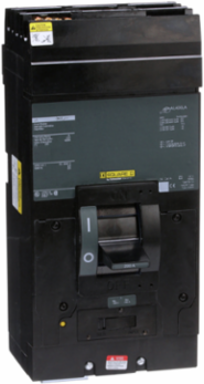

Square D LA36125 Circuit Breaker 125A 3 Pole I-Line 600VAC 22kA Thermal-Magnetic
Square D LA36125 Circuit Breaker 125A 3 Pole I-Line 600VAC 22kA Thermal-Magnetic
- MPN: LA36125
- UPC: 785901339267
- PPN: SCH-LA36125
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Square D LA molded case circuit breakers provide basic thermal magnetic protection. Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions. LA circuit breaker could be used for muliple applications such as construction, in commercial and industrail buildings, for control equipment panels for OEM commercial and even in mines. This 3 poles I-line plug in circuit breaker is equiped with thermal magnetic trip unit with rated current of 125A and voltage of 600VAC. Breaker has an interrapting rating as 22kA at 600VAC, 10kA at 250VDC All LA molded case circuit breakers have trip indication as operating handle being in central position when the breaker is tripped. This circuit breakers are commonly used in I-line combo panel with terminal wire range for AL400LA as 1 wire AWG 1 to 600 kcmil or 2 wires AWG 1 to 250 kcmil aluminium or coopper. LA breakers are UL 489, CSA, IEC certified.
Specifications
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1410004EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free plastic parts product
Complementary
- Circuit Breaker Application
- HACR rated
- Height
- 11 in
- Breaking Capacity Code
- A
- Poles Description
- 3P
- Width
- 6 in
- Electrical Connection
- lugs, load || I-Line connection, line
- Magnetic Hold Current
- 625 A
Terminal IdentifierAL400LA
Mounting ModeI-Line
Magnetic Tripping Current1250-1250 A
[In] Rated Current125 A
Wiring Configuration3-wire
Depth5.84 in
Specifications
- Trip Unit Technology
- thermal-magnetic
Product Or Component Typecircuit breaker
Environment
- Product Certifications
- CSA || UL listed
