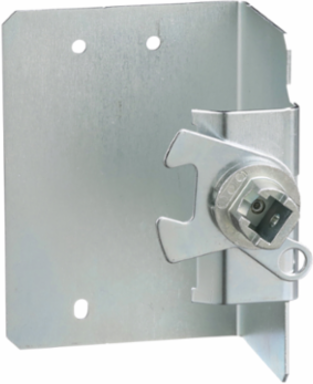

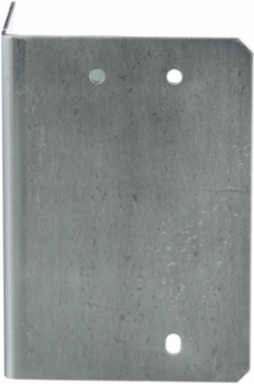

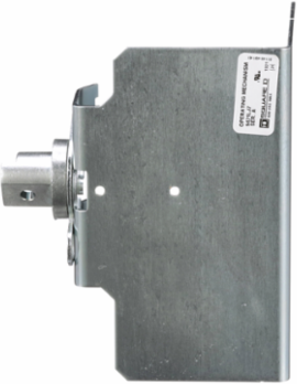

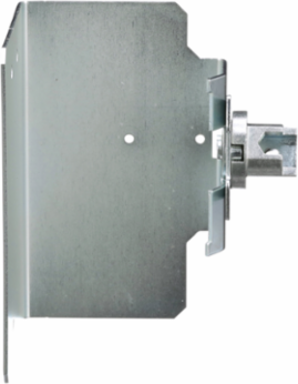

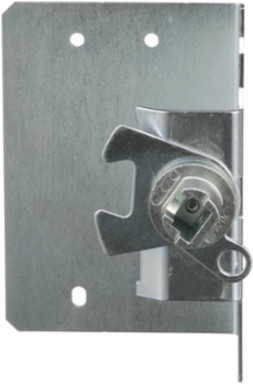

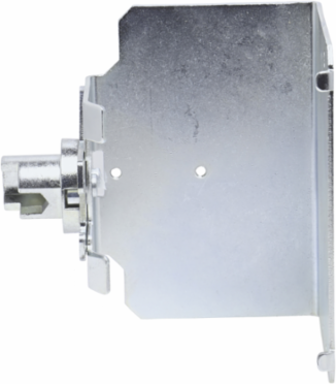

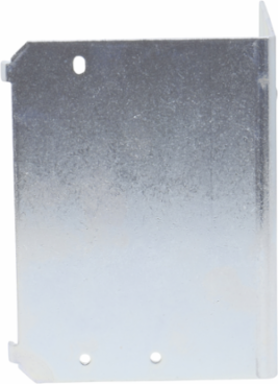

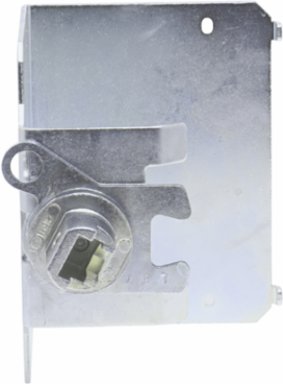

Square D 9421LJ7 PowerPacT H/J Operating Mechanism 150A-250A NEMA 1/3R/12
- MPN: 9421LJ7
- UPC: 785901538028
- PPN: SCH-9421LJ7
CAD
$304.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism will work with PowerPacT H and PowerPacT J and Compact NSF circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 250A. Proper circuit breaker, operating handle and operating shaft must be ordered separately. Mechanism is UL Component Recognized and CSA certified.
Features
- Engineered for a precise mechanical fit, this Type L variable-depth mechanism integrates seamlessly with all 2-pole or 3-pole Square DTM PowerPactTM H-frame and J-frame molded case circuit breakers, as well as CompactTM NSF devices. This dedicated compatibility ensures a flawless physical interface, allowing industrial panel builders to standardize their disconnect mechanisms across a broad range of 600V AC distribution systems without needing multiple niche adapters.
- Meeting rigid NEMA 1, 3R, and 12 sealing requirements when properly paired with an operating handle, this all-metal mechanism prevents the ingress of falling dirt, circulating dust, lint, and external water spray. It protects the core breaker link from premature oxidation and binding, making it highly reliable for washdown zones, processing floors, and outdoor utility installations.
- This safety-focused mechanism features a robust internal lockout system that can be securely padlocked in the "Off" position when the enclosure door is completely open. When combined with a compatible 3-inch or 6-inch exterior rotary handle, it accepts up to three individual padlocks simultaneously keeping the breaker isolated and mechanically locking the door shut to prevent unauthorized entry during critical lockout-tagout (LOTO) maintenance procedures.
- eaturing an intelligent internal link that maintains a distinct mechanical posture when a fault occurs, this mechanism mirrors the exact status of the enclosed breaker. It provides external operators with immediate visual confirmation of a trip event, letting electrical technicians spot safety faults instantly before opening the panel door, accelerating diagnostic testing and reducing worker exposure to potential arc-flash hazards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Circuit Breaker Name
- MG-NSF 250 A, PowerPact H or J 250 A
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- 9421L
- Sustainable Packaging
- No
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 933.492 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Service Catalog ItemFinished good
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1848
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Energy Efficiency OptimizedFalse
Product Or Component TypeOperating Mechanism
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Halogene PerformanceHalogen free plastic parts product
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- Operating Mechanism
Range Of Product9421L
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
