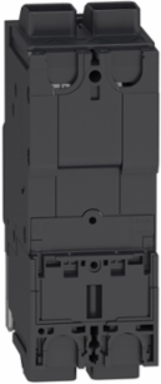

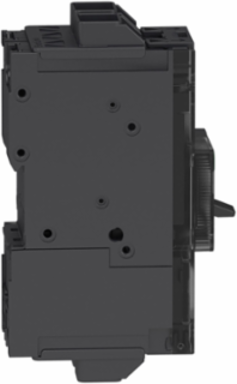

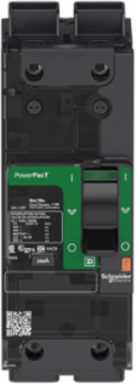

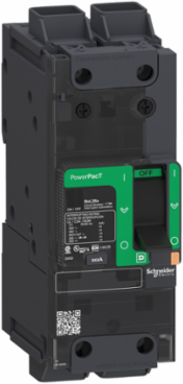

Schneider Electric BDL26100LU PowerPacT B Circuit Breaker, 100A, 2 Pole, 14kA, Thermal Magnetic
- MPN: BDL26100LU
- PPN: SCH-BDL26100LU
CAD
$2060.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed to provide reliable protection in power distribution systems, the PowerPacT B circuit breaker from Schneider Electric is engineered for efficiency and safety. With a current rating of 100A and a two-pole configuration, this thermal magnetic circuit breaker offers robust performance with a short-circuit current rating of 14kA. It's an excellent choice for applications requiring dependable circuit protection, ensuring sensitive equipment is safeguarded from overloads and faults. Whether used in commercial or industrial settings, its solid construction and advanced technology make it an essential component of any electrical system.
Documentation & Downloads
Specifications
Additional
- Amperage
- 100 A
- Breaking Capacity
- 25 kA 208Y/120 V AC, 18 kA 240 V AC, 25 kA 480/277 V AC, 14 kA 600Y/347 V AC, 14 kA 250 V DC
- Trip Unit Technology
- Thermal-magnetic TM-D
- Rated Insulation Voltage
- 800 V IEC 60947-2
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2, 440 V In
- Protected Poles Description
- 2t
- AWG Gauge
- AWG 6 to AWG 2/0 fine stranded aluminum/copper, AWG 14 to AWG 3/0 rigid or stranded aluminum/copper

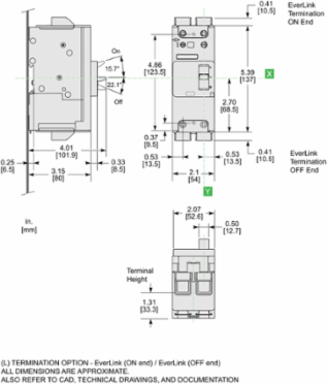

- Width
- 54 mm (2.13 in)
- Net Weight
- 0.769 kg (1.70 lb)
- IK Degree of Protection
- IK07 IEC 62262
- Operating Temperature Range
- -25 to 70 C (-13 to 158 F)
- Operating Altitude
- 2000 m without derating, 5000 m with derating (6561.68 ft without derating)
- Standards
- EN/IEC 60947-2, EN/IEC 60947-5-1, NEMA AB1, CSA C22.2 No 5, UL 489, GB 14048.2, NMX J-266
- Product Type
- Circuit Breaker
- Device Application
- Distribution
- Control Type
- Toggle
- Mounting Mode
- Clip-on 35 mm symmetrical DIN rail or screws plate
Number of Poles2P
Voltage525 V AC 50/60 Hz UL 489, 600Y/347 V AC, 480/277 V AC
Continuous Current Rating80 %
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
Rated Current100 A
Connection Pitch27 mm (1.06 in)
Height137 mm (5.39 in)
Depth80 mm (3.15 in)
IP Degree of ProtectionFront cover IP40 IEC 60529
Pollution Degree3 IEC 60947-1
Storage Temperature Range-50 to 85 C (-58 to 185 F)
ComplianceUL Listed, IEC, CCC, EAC, CSA, NOM, CE
SustainabilityGreen Premium, RoHS Compliant, Mercury Free, PVC Free, Halogen Free
Product RangePowerPact B
Electrical ConnectionEverlink lug, line and load
Tightening Torque5 N.m for 2.5-16 mm2 (AWG 14 to AWG 4), 9 N.m for 25-95 mm2 (AWG 3 to AWG 3/0)
Local SignallingPresence of auxiliary contacts flag (green)
