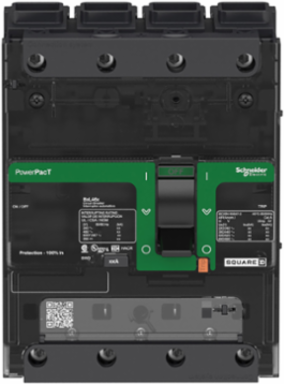

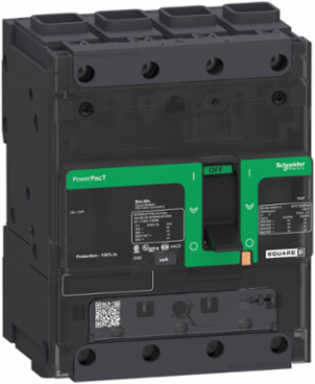

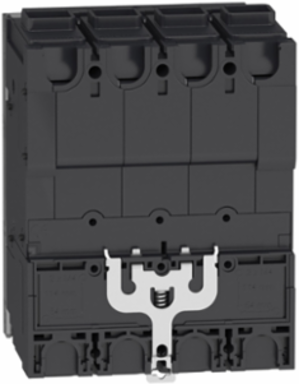

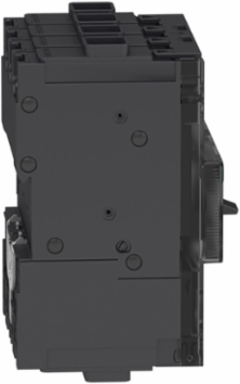

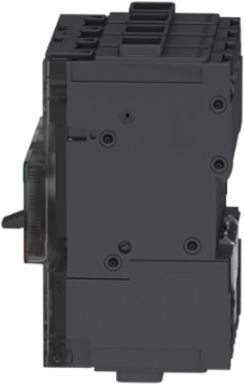

Square D BJF46125 PowerPact B Circuit Breaker 125A 4 Pole 600Y/347VAC 25kA
- MPN: BJF46125
- PPN: SCH-BJF46125
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric PowerPact B Circuit Breaker is engineered to provide robust protection and reliable performance in power distribution systems. With a rated current of 125A and a four-pole design, it is well-suited for high-demand applications up to 600Y/347VAC. This circuit breaker features a short-circuit rating of 25kA, ensuring comprehensive protection against overload and fault conditions, making it an essential component for enhancing the safety and efficiency of your electrical systems. Its durable construction and advanced engineering make it a trusted choice for both commercial and industrial environments where dependable operation is paramount.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 125 A
- Rated Service Breaking Capacity
- 100 kA 220-240 V AC, 65 kA 380-415 V AC, 25 kA 500-525 V AC, 2.5 kA 690 V AC
- Rated Insulation Voltage
- 800 V IEC 60947-2
- Amperage
- 125 A
- Trip Unit Technology
- Thermal-magnetic TM-D
- Circuit Breaker Application
- HACR rated
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Wire Size Range
- AWG 14 to AWG 3/0 aluminum/copper
- Power Wire Stripping Length
- 20 mm (0.79 in)
- Mounting Mode
- Clip-on 35 mm symmetrical DIN rail, By screws plate
- Height
- 137 mm (5.39 in)
- Depth
- 80 mm (3.15 in)
- Material
- Grey RAL 7016 finish
- Utilisation Category
- Category A
- IK Degree of Protection
- IK07 IEC 62262
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- Operating Altitude
- 2000 m without derating, 5000 m with derating (6561.68 ft)
- Quality Labels
- CE
- EU RoHS Directive
- Compliant with Exemptions
- Mercury Free
- Yes
- Color
- Grey RAL 7016
Breaking Capacity100 kA 208Y/120 V AC, 100 kA 240 V AC, 65 kA 480/277 V AC, 65 kA 480 V AC, 25 kA 600Y/347 V AC, 50 kA 250 V DC
Rated Operational Voltage690 V AC 50/60 Hz UL 489
Rated Impulse Withstand Voltage8 kV IEC 60947-2
Poles4P
Continuous Current Rating80 %
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Connection Pitch27 mm (1.06 in)
Tightening Torque5 N.m (44.25 lbf.in) AWG 14-4, 9 N.m (79.66 lbf.in) AWG 3-3/0
Number of Slots1 auxiliary switch OF plug-in, 1 voltage release MN or MX plug-in, 1 alarm switch SD plug-in
Electrical ConnectionTerminal nut, ON and OFF end
Width108 mm (4.25 in)
Net Weight1.241 kg (2.74 lb)
Suitability for IsolationYes IEC 60947-2
IP Degree of ProtectionFront cover IP40 IEC 60529
Pollution Degree3 IEC 60947-1
Ambient Air Temperature for Storage-50 to 85 °C (-58 to 185 °F)
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
StandardsNMX J-266, NEMA AB1, EN/IEC 60947-5-1, UL 489, EN/IEC 60947-2, GB 14048.2, CSA C22.2 No 5
PVC FreeYes
Halogen Content PerformanceHalogen free product
