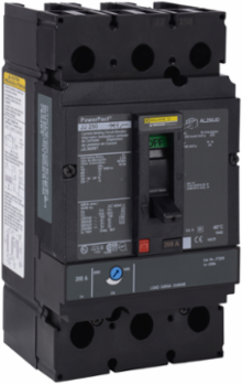

Square D JJL36250T PowerPacT J Circuit Breaker, 250A, 3 Pole, 600VAC, 25kA, Thermal Magnetic
- MPN: JJL36250T
- UPC: 785901854302
- PPN: SCH-JJL36250T
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The PowerPact™ J-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This PowerPact J, circuit breaker and is 3-pole and has a breaking capacity of 25kA@600VAC and has a rated current of 250A. This ia a unit mount breaker and complies to UL listed, IEC, CCC, CE & CSA standards. With a magnetic hold current of 1250A and a magnetic tripping current of 2500-2500A Dimensions for this product are 7.52 in (H),4.12 in (W), 5 in (D) with an ambient temperature rating of 40 °C. This product comes with an 18 month warranty.
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- circuit breaker
Complementary
- Circuit Breaker Application
- HACR rated
- Network Frequency
- 50/60 Hz
- Terminal Identifier
- AL250JD
- [In] Rated Current
- 250-250 A
- Long Time Pick-Up Adjustment Range
- 0.25...1 x In
- Height
- 191 mm
- Breaking Capacity
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Suitability For Isolation
- yes IEC 60947-2
- [Ue] Rated Operational Voltage
- 600 V AC 50/60 Hz IEC 60947-3
- Mounting Support
- lug
- Magnetic Tripping Current
- 2500-2500 A
- Local Signalling
- switched off (OFF) 1 trip indicator green)
- Protection Type
- overload protection || short-circuit protection
- Width
- 104 mm
- Depth
- 86 mm
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Control Type
- toggle
Mounting Modeunit mount lug)
Wire Stripping Length25 mm
Utilisation Categorycategory A
[Ics] Rated Service Breaking Capacity65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Trip Unit Technologythermal-magnetic
Continuous Current Rating80 %
[Ui] Rated Insulation Voltage750 V IEC 60947-2
Communication InterfaceModbus
Tightening Torque25-25 N.m 95-185 mm² AWG 3/0...350 kcmil)
Breaking Capacity CodeJ
Poles Description3P
Number Of Slots2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Awg GaugeAWG 3/0...350 kcmil aluminum/copper terminals
Electrical Connectionlugs, line || lugs, load
Net Weight2.4 kg
Magnetic Hold Current1250 A
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2206031EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2206031EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -50-85 °C
- Quality Labels
- CE
- Operating Altitude
- < 2000 m without derating || 5000 m with derating
Pollution Degree3
StandardsUL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Product CertificationsUL || CSA || NOM
Ip Degree Of Protectionfront cover IP40
