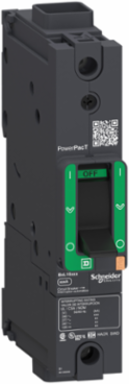

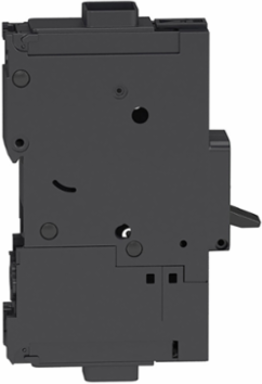

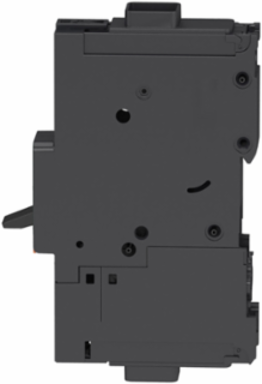

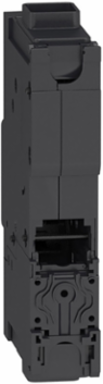

Square D BDF16015 PowerPact B Circuit Breaker 15A 1 Pole 600Y/347VAC 14kA
- MPN: BDF16015
- PPN: SCH-BDF16015
CAD
$719.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This circuit breaker from Schneider Electric is engineered for robust power distribution and is ideal for a range of industrial applications. Rated at 15A with a single pole configuration, it operates at 600Y/347VAC and provides essential protection with a short-circuit rating of 14kA. The PowerPact B series ensures reliable, efficient performance under various conditions, making it a vital component in modern electrical installations where safety and efficiency are paramount.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 15 A
- Rated Operational Voltage
- 240 V AC 50/60 Hz UL 489
- Voltage
- 600Y/347 V AC
- Control Type
- Toggle
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex F ed 5.2
- Mounting Mode
- Clip-on 35 mm symmetrical DIN rail, by screws plate
- Connection Pitch
- 27 mm
- Tightening Torque
- 5 N.m (AWG 14...AWG 4), 9 N.m (AWG 3...AWG 3/0)
- AWG Gauge
- AWG 14...AWG 3/0 aluminum/copper
- IP Degree of Protection
- Front cover IP40 IEC 60529
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- Standards
- NMX J-266, UL 489, EN/IEC 60947-2, NEMA AB1, CSA C22.2 No 5, GB 14048.2, EN/IEC 60947-5-1
- Compliance
- CE, EU RoHS Directive Compliant, Mercury Free, PVC Free, Halogen Free
- Mercury Free
- Yes
- Color
- Gray RAL 7016
- Device Short Name
- BD 015
- Circuit Breaker Application
- HACR rated
Breaking Capacity25 kA 208Y/120 V AC, 25 kA 240 V AC, 18 kA 480Y/277 V AC, 14 kA 600/347 V AC, 10 kA 125 V DC
Continuous Current Rating80%
Trip Unit TechnologyThermal-magnetic TM-D
Poles1P
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2
Dimensions (W x H x D)27 mm x 137 mm x 80 mm
Electrical ConnectionTerminal nut, ON and OFF end
Wire Stripping Length20 mm
Rated Insulation Voltage800 V IEC 60947-2
IK Degree of ProtectionIK07 IEC 62262
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Operating Altitude2000 m without derating, 5000 m with derating
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
Halogen Content PerformanceHalogen free product
RoHS Exemption InformationYes
Net Weight0.46 kg
Product NamePowerPact B
Suitability For IsolationYes IEC 60947-2
