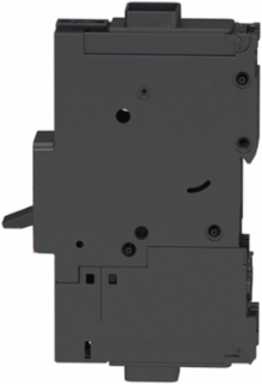

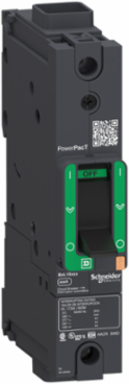

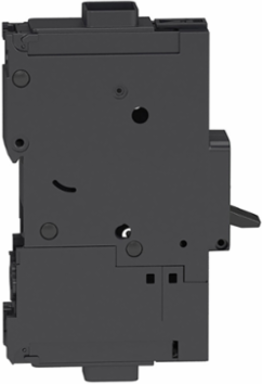

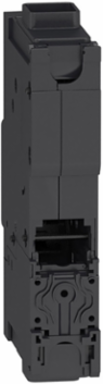

Schneider Electric BDF16020 PowerPact B Circuit Breaker, 20A, 1 Pole, 600Y/347VAC, 14kA
- MPN: BDF16020
- PPN: SCH-BDF16020
- UNSPSC: 39121601
CAD
$719.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric BDF16020 PowerPact B Circuit Breaker is engineered for robust performance in power distribution applications. With a 20A rating and a single pole configuration, this device supports voltage levels up to 600Y/347VAC. It features a remarkable short-circuit current rating of 14kA, ensuring reliable protection for electrical circuits against overloads and faults. Designed for efficiency and safety, this molded case circuit breaker is a vital component for any modern electrical panel, delivering dependable operation in various industrial and commercial environments.
Features
- Available in 1, 2, 3, and 4 pole for unit mounts
- Available in 1, 2, and 3 pole for I-Line
- Dual rated AC/DC with 3 levels of breaking capacity
- A wide range of accessories, auxiliaries, and lug connections available
- UL, CSA, NOM, IEC, CCC certified, and CE marked
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Depth | 80 mm |
| Weight | 1719 g |
|---|
Physical Attributes
| Color | Gray RAL 7016) |
|---|
| Wire Stripping Length | 20 mm |
|---|
Complementary Attributes
| Line Rated Current | 20-20 A |
|---|---|
| Ue Rated Operational Voltage | 240 V AC 50/60 Hz UL 489 |
| Uimp Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
| Ics Rated Service Breaking Capacity | 25 kA 220...240 V AC 50/60 Hz IEC 60947-2 |
|---|---|
| Ui Rated Insulation Voltage | 800 V IEC 60947-2 |
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Awg Gauge | 14 AWG...8 AWG aluminium/copper, 6 AWG...3/0 AWG aluminium/copper |
| Certificate Agency | UL, IEC, CCC, EAC, CSA, NOM |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 3 kg CO2 eq., 2.8403278929436455 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 9 kg CO2 eq., 8.926027641774093 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Circuit Breaker Application | HACR rated |
| Continuous Current Rating | 80 % |
| Device Application | distribution |
| Electrical Connection | terminal nut, ON and OFF end |
| Energy Efficiency Optimized | False |
| Mounting Mode | clip-on 35 mm symmetrical DIN rail)by screws plate) |
| Number Of Poles | 1P |
| Product Name | PowerPact B |
| Protected Poles Description | 1t |
| Quantity Per Set | set of 1 |
| Returnability | Yes |
| Suitability For Isolation | yes IEC 60947-2 |
| Total Lifecycle Carbon Footprint | 162 kg CO2 eq. |
| Trip Unit Technology | thermal-magneticTM-D, |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 27 mm |
| Customs Code | 8536200020 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | 5-5 N.m 2.5-16 mm² (14 AWG...4 AWG), 9-9 N.m 25-95 mm² (3 AWG...3/0 AWG) |
| Carbon Footprint Of The Distribution Phase A4 | 0, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.48657929220696505, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 149 kg CO2 eq., 149.3035136191809 |
| Local Publishable Date | 2025-11-13 |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1909 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Connection Pitch | 27 mm |
| Control Type | toggle |
| Device Short Name | BD 020 |
| Electrical Durability | 10000 cycles IEC 947-1 Annex K ed 5.2 In |
| Mechanical Durability | 15000 cycles IEC 947-1 Annex F ed 5.2 |
| Network Frequency | 50/60 Hz |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | circuit breaker |
| Quality Labels | CE |
| Range | PowerPact |
| Software Version | v6.2.5-6 |
| Sustainable Packaging | Yes |
| Trip Unit Name | TM-D |
| Utilisation Category | category A |
| Database Version | 2024-01 |
| Height Nominal | 137 mm |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free product |
| Functional Unit Description | Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 55 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Ambient Air Temperature For Storage | -50-85 °C, -50-85 °C |
| Halogene Performance | Halogen free product |
| Mercury Free | Yes |
| 9 Mm Pitches | 3 |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | front cover IP40 IEC 60529 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-05-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 161.5564484461056 |
| Environmental Disclosure | ENVPEP2311047EN |
| Halogen Content Performance | Halogen free product |
| Operating Altitude | 6561.68 ft (2000 m) without derating5000 m with derating |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2311047EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | circuit breaker |
|---|
