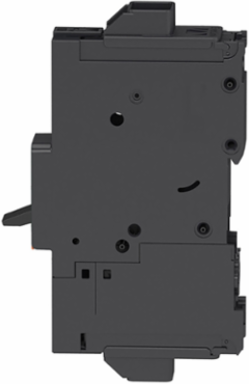

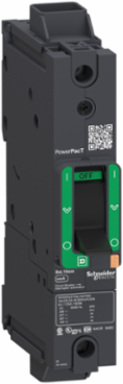

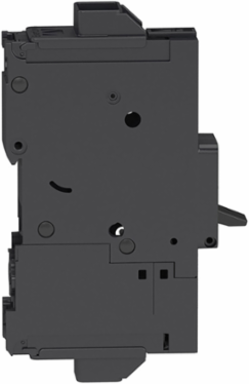

Schneider Electric BGL16015 PowerPact B Circuit Breaker, 15A, 1 Pole, 600Y/347VAC, 18kA, Thermal Magnetic
- MPN: BGL16015
- PPN: SCH-BGL16015
CAD
$914.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This high-performance circuit breaker from Schneider Electric is designed to provide reliable protection and efficient power distribution in industrial applications. With a rating of 15A and a 1-pole configuration, it operates effectively at 600Y/347VAC and is capable of handling fault currents up to 18kA. The thermal-magnetic mechanism ensures prompt response to overloads and short circuits, safeguarding both your equipment and your operations. Ideal for panel builders and electrical systems requiring robust protection, this molded case circuit breaker stands out for its durability and dependability in demanding environments.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 15 A
- Voltage
- 240 V AC 50/60 Hz
- Trip Unit Technology
- Thermal-magnetic TM-D
- Rated Insulation Voltage
- 800 V IEC 60947-2
- Suitability For Isolation
- Yes IEC 60947-2
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex F ed 5.2
- Connection Pitch
- 27 mm (1.06 in)
- Mounting Mode
- Clip-on 35 mm symmetrical DIN rail, By screws plate
- Tightening Torque
- 5-5 N.m (44.25 lbf.in) for AWG 14...AWG 4, 9-9 N.m (79.66 lbf.in) for AWG 3...AWG 3/0

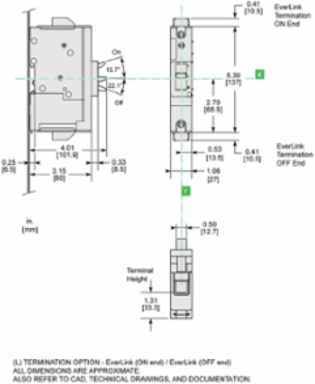

- Height
- 137 mm (5.39 in)
- Depth
- 80 mm (3.15 in)
- Circuit Breaker Application
- HACR rated
- Standards
- EN/IEC 60947-2, EN/IEC 60947-5-1, CSA C22.2 No 5, NEMA AB1, GB 14048.2, NMX J-266, UL 489
- IP Degree of Protection
- Front cover IP40 IEC 60529
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- RoHS Compliance
- Compliant with Exemptions
- PVC Free
- Yes
- Color
- Gray RAL 7016
Poles1P
Breaking Capacity65 kA 220...240 V AC 50/60 Hz
Continuous Current Rating80%
Rated Impulse Withstand Voltage8 kV IEC 60947-2
Utilisation CategoryCategory A
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2
AWG GaugeAWG 6...AWG 2/0 fine stranded aluminum/copper, AWG 14...AWG 3/0 rigid or stranded aluminum/copper
Electrical ConnectionEverlink lug, line and load
Wire Stripping Length20 mm (0.79 in)
Width27 mm (1.06 in)
Net Weight0.51 kg (1.12 lb)
Quality LabelsCE
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
IK Degree of ProtectionIK07 IEC 62262
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Operating Altitude2000 m (6562 ft) without derating, 5000 m with derating
Mercury FreeYes
Halogen ContentHalogen free product
Country of OriginMX
