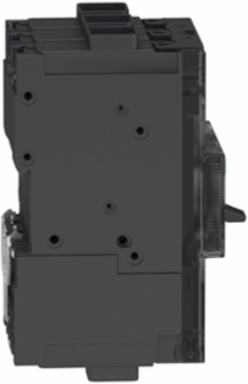

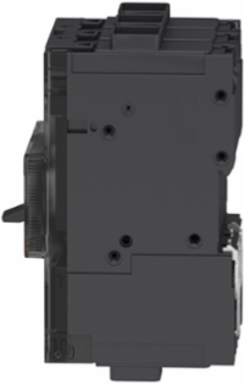

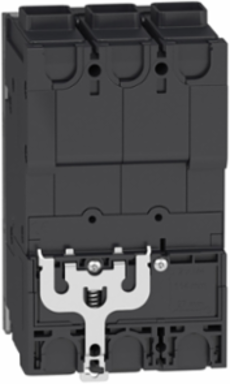

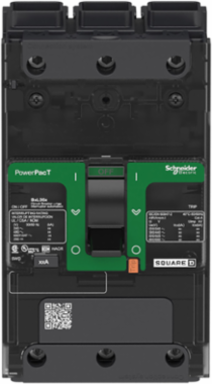

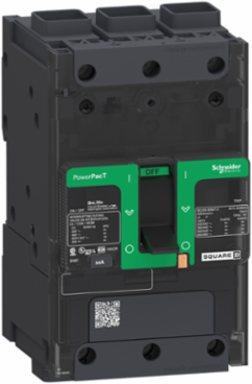

Schneider Electric BDF36050 PowerPacT B Circuit Breaker, 50A, 3 Pole, 600Y/347VAC, 14kA
- MPN: BDF36050
- PPN: SCH-BDF36050
CAD
$1800.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric PowerPacT B Circuit Breaker is designed to offer robust protection for your electrical systems, featuring a 50A capacity across three poles. With a voltage rating of 600Y/347VAC and a short-circuit interruption rating of 14kA, this circuit breaker ensures reliable performance in various power distribution applications. Its durable construction makes it ideal for use in molded case circuit configurations, providing essential thermal and mechanical protection for critical equipment. Trust in Schneider Electric's engineering to safeguard your electrical infrastructure effectively and efficiently.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 50 A
- Breaking Capacity Code
- D
- Rated Service Breaking Capacity
- 25 kA 220-240 V AC, 14 kA 500-525 V AC, 18 kA 380-415 V AC, 18 kA 440 V AC IEC 60947-2
- Rated Insulation Voltage
- 800 V IEC 60947-2
- Poles
- 3P
- Trip Unit Technology
- Thermal-magnetic TM-D
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Pollution Degree
- 3 IEC 60947-1
- Connection Pitch
- 27 mm (1.06 in)
- Height
- 137 mm (5.39 in)
- Net Weight
- 0.924 kg (2.04 lb)
- Tightening Torque
- 5 N.m (44.25 lbf.in) for AWG 14...AWG 4, 9 N.m (79.66 lbf.in) for AWG 3...AWG 3/0
- Electrical Connection
- Terminal nut, ON and OFF end
- Number of Slots
- 1 auxiliary switch OF plug-in, 1 voltage release MN or MX plug-in, 1 alarm switch SD plug-in
- Ip Degree Of Protection
- Front cover IP40 IEC 60529
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- Reach Regulation
- Contains Substances of Very High Concern above threshold
- China Rohs Regulation
- Out of China RoHS scope
- Product Certifications
- UL, IEC, CCC, EAC, CSA, NOM
- Product Or Component Type
- Circuit breaker
- Device Short Name
- BD 050
- Poles Description
- 3P
- 9 mm Pitch
- 9
- Sustainable Offer Status
- Green Premium product
- PVC Free
- Yes
- Circularity Profile
- N/A
Breaking Capacity25 kA 220-240 V AC, 14 kA 500-525 V AC, 18 kA 380-415 V AC, 18 kA 440 V AC UL 489
Rated Operational Voltage525 V AC 50/60 Hz UL 489
Rated Impulse Withstand Voltage8 kV IEC 60947-2
Continuous Current Rating80 %
Circuit Breaker ApplicationHACR rated
Utilisation CategoryCategory A
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Width81 mm (3.19 in)
Depth80 mm (3.15 in)
Wire Stripping Length20 mm (0.79 in)
AWG GaugeAWG 14 to AWG 8 aluminum/copper, AWG 6 to AWG 3/0 aluminum/copper
Mounting ModeClip-on 35 mm symmetrical DIN rail, By screws plate
Local SignallingAuxiliary contacts flag (green)
Ik Degree Of ProtectionIK07 IEC 62262
Operating Altitude2000 m without derating, 5000 m with derating (6561.68 ft without derating)
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Quality LabelsCE
Device ApplicationDistribution
Trip Unit NameTM-D
Protected Poles Description3t
ColourGrey (RAL 7016)
Mercury FreeYes
Halogen Content PerformanceHalogen free product
Environmental DisclosureENVPEP1610005EN
