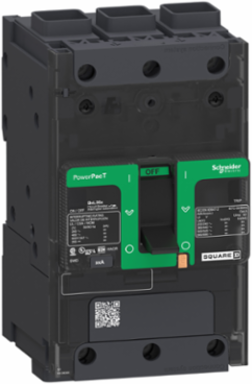

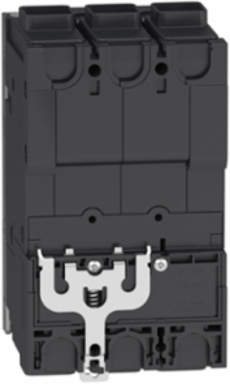

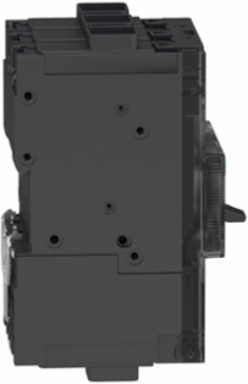

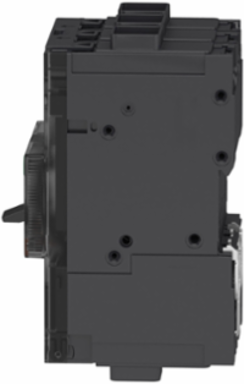

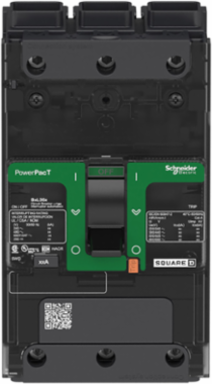

Schneider Electric BDF36080 PowerPacT B Circuit Breaker, 80A, 3 Pole, 600Y/347VAC, 14kA
Schneider Electric BDF36080 PowerPacT B Circuit Breaker, 80A, 3 Pole, 600Y/347VAC, 14kA
- MPN: BDF36080
- PPN: SCH-BDF36080
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2038.54/ EA
Description
Engineered for robust power distribution, the Schneider Electric BDF36080 PowerPacT B Circuit Breaker ensures reliable protection and performance in electrical systems. With a current rating of 80A and designed for three-pole configurations, this circuit breaker is suitable for 600Y/347VAC applications, providing essential circuit protection for various industrial settings. Its capability to handle fault currents up to 14kA makes it a vital component for safeguarding electrical equipment and ensuring safe operation. This molded case circuit breaker reflects Schneider Electric’s commitment to innovation and efficiency in power management.
Specifications
- Rated Current
- 80 A
- Breaking Capacity
- 25 kA 220-240 V AC, 14 kA 500-525 V AC, 18 kA 380-440 V AC, 18 kA 600Y/347 V AC, 14 kA 250 V DC, 25 kA 208Y/120 V AC
- Rated Operational Voltage
- 525 V AC
- Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Continuous Current Rating
- 80%
- Utilisation Category
- Category A
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- AWG Gauge
- AWG 14 to AWG 8 aluminum/copper, AWG 6 to AWG 3/0 aluminum/copper
- Mounting Mode
- Clip-on 35 mm DIN rail, By screws plate
- Tightening Torque
- 5 N.m (44.25 Lbf.In) AWG 14-4, 9 N.m (79.66 Lbf.In) AWG 3-3/0
- Width
- 81 mm (3.19 in)
- Net Weight
- 0.924 kg (2.04 lb)
- IP Degree of Protection
- Front cover IP40 IEC 60529
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- Standards
- GB 14048.2, NMX J-266, EN/IEC 60947-2, NEMA AB1, CSA C22.2 No 5, UL 489, EN/IEC 60947-5-1
- Mercury Free
- Yes
- PVC Free
- Yes
- Color
- Gray (RAL 7016)
Number of Poles3P
Breaking Capacity CodeD
Rated Insulation Voltage800 V IEC 60947-2
Trip Unit TechnologyThermal-magnetic TM-D
Suitability for IsolationYes IEC 60947-2
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
Connection Pitch27 mm (1.06 in)
Local SignallingAuxiliary contacts flag green
Electrical ConnectionTerminal nut, ON and OFF end
Height137 mm (5.39 in)
Depth80 mm (3.15 in)
Circuit Breaker ApplicationHACR rated
IK Degree of ProtectionIK07 IEC 62262
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Operating Altitude2000 m (6561.68 ft) without derating, 5000 m with derating
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
RoHS ComplianceCompliant with Exemptions
Halogen Content PerformanceHalogen free product
Wire Stripping Length20 mm
