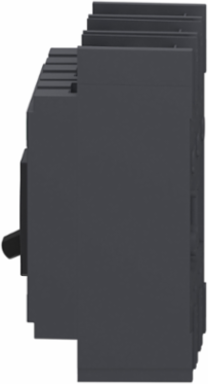

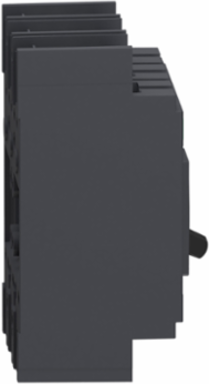

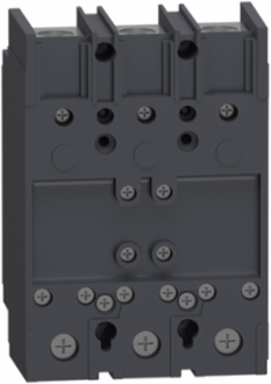

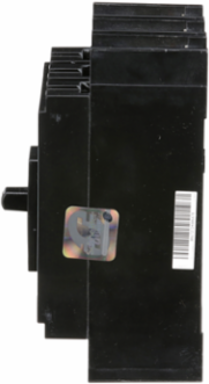

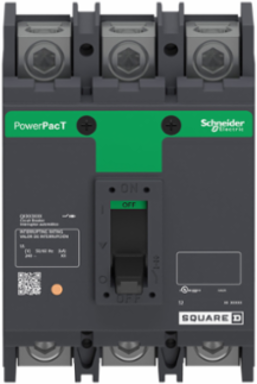

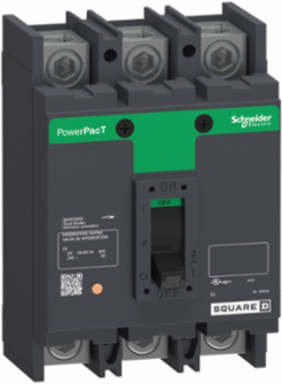

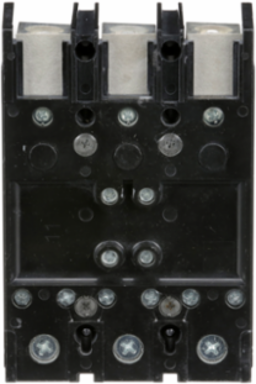

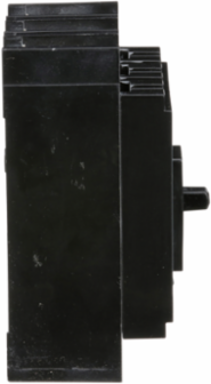

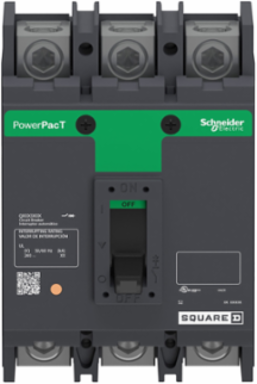

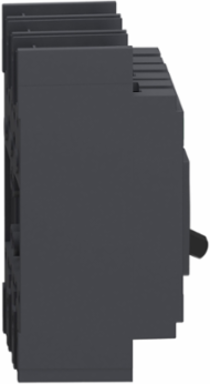

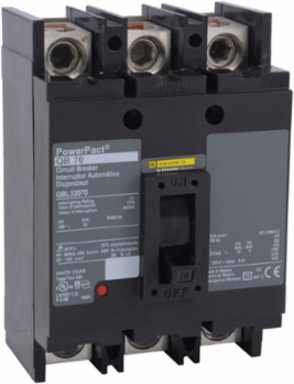

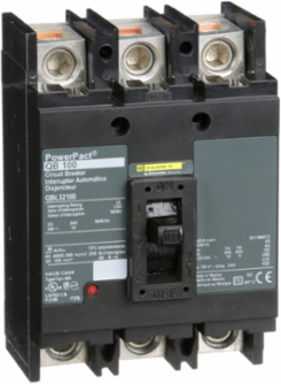

Square D QBL32100 Circuit Breaker PowerPact Q 100A 3 Pole 240VAC 10kA Thermal-Magnetic

MPN: QBL32100
UPC: 785901702870
PPN: SCH-QBL32100
UNSPSC: 39121601

$824.60

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 100A, 3 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.

Features

PowerPacT Q 100A, 240VAC 3 poles unit mount molded case circuit breaker.
Designed for overcurrent protection and switching on AC systems.
PowerPacT Q circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole
Breaker has interrupting ratings (AIR) of 10kA 240 VAC and has 80% rating
Main applications are Industrial markets and OEM Commercial
UL 489 Listed, CSA, ANCE, IEC certified for world wide applications

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Depth	3.93 in

Weight	2145 g

Physical Attributes

Wire Stripping Length	22 mm

Complementary Attributes

Line Rated Current	100-, 100 A
Uimp Rated Impulse Withstand Voltage	8 kV UL

Ue Rated Operational Voltage	240 V AC 50/60 Hz UL

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Connection	lugs, load, lugs, line
Carbon Footprint Of The Distribution Phase A4	0.6198783862898292, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.41436454334715167, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	20 kg CO2 eq., 20.475910439201947
Local Publishable Date	2026-03-26
Device Type	LV equipment - Low voltage circuit breaker
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	4
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1909
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Continuous Current Rating	80 %
Device Application	distribution
Local Signalling	1 trip indicator green)
Magnetic Tripping Current	2400-2400 A
Mounting Mode	unit mount lug)
Network Frequency	50/60 Hz
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	circuit breaker
Returnability	Yes
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	40 kg CO2 eq.
Utilisation Category	category A
Database Version	2024-01
Height Nominal	6.47 in
Nbr. Of Units In Pkg.	1
Halogen Free Status	Halogen free product
Functional Unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	42.5736

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Certificate Agency	UL, CSA, NOM
Carbon Footprint Of The End Of Life Phase C1 To C4	4 kg CO2 eq., 3.620324773879172
Carbon Footprint Of The Manufacturing Phase A1 To A3	15 kg CO2 eq., 14.700646228636082
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Circuit Breaker Application	HACR rated
Control Type	operating handle
Energy Efficiency Optimized	False
Magnetic Hold Current	1200 A
Mechanical Durability	1000 cycles loaded5000 cycles no load
Mounting Support	lug
Number Of Poles	3P
Product Name	PowerPact Q
Range	PowerPact
Software Version	v6.2.5-6
Tightening Torque	28-28 N.m 25-150 mm² (4 AWG...300 kcmil)
Trip Unit Technology	thermal-magnetic
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	4.5 in
Customs Code	8536200020
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20
Recyclability Potential In %	56

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Halogene Performance	Halogen free product
Mercury Free	Yes
Ambient Air Temperature For Operation	40-70 °C
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-07-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	39.83112437135418
Environmental Disclosure	ENVPEP2311048EN
Halogen Content Performance	Halogen free product
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2311048EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
