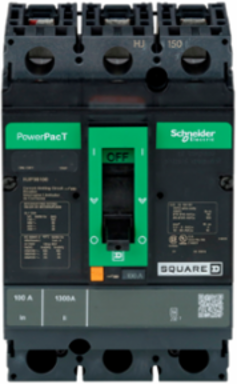

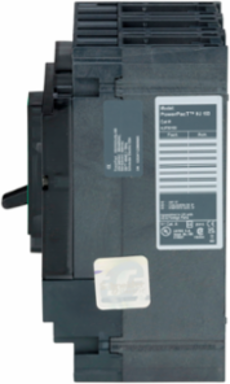

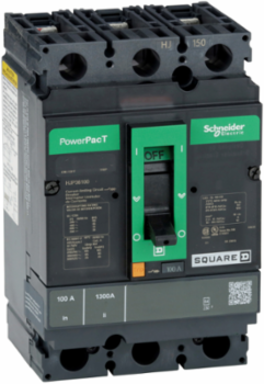

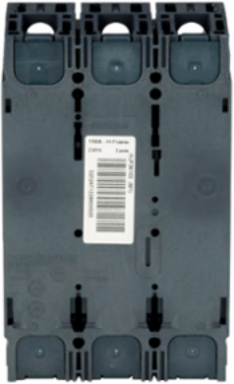

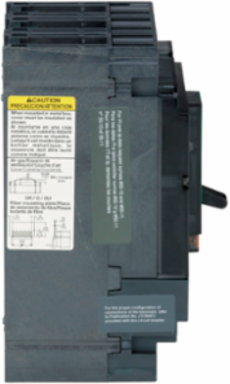

Schneider Electric HJP36100 PowerPact H Circuit Breaker 100A 3 Pole 600VAC Thermal Magnetic 25kA
Schneider Electric HJP36100 PowerPact H Circuit Breaker 100A 3 Pole 600VAC Thermal Magnetic 25kA
- MPN: HJP36100
- UPC: 785901677000
- PPN: SCH-HJP36100
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3799.06/ EA
Description
The PowerPact H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. The new generation PowerPact with Micrologic circuit breakers set the standard with direct access to energy management. Integrated metering enhances their protective functions. For the first time, Schneider Electric™ users can monitor energy from 15 to 3000 A, offering new performance in a remarkably compact device. This PowerPact H, circuit breaker has a rated current of 100A and is a 3P breaker. This breaker has a breaking capacity of 25 kA@600VAC and has an thermal-magnetic trip technology. This breaker complies to UL, CE, IEC & CSA standards. Thermal current for this breaker has a magnetic tripping current of 1450A. Dimensions for this breaker are 6.4 in (H),4.12 in (W),4.36 in (D) and has an ambient temperature of 40 °C. This product comes with an 18 months warranty.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Product Certifications
- UL || CSA || NOM
- Pollution Degree
- 3 IEC 60947-1
- Quality Labels
- CE
StandardsUL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Ip Degree Of Protectionfront cover IP40 IEC 60529
Ambient Air Temperature For Storage-50-85 °C
Operating Altitude< 2000 m without derating || 5000 m with derating
Complementary
- Mounting Mode
- unit mount lug)
- Terminal Identifier
- AL150HD
- Trip Unit Technology
- thermal-magnetic
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-3
- Mounting Support
- lug
- Magnetic Tripping Current
- 1700-1700 A
- Protected Poles Description
- 3t
- Electrical Connection
- terminal nut, line || lugs, load
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Control Type
- toggle
- Wire Stripping Length
- 16 mm
- Utilisation Category
- category A
- Breaking Capacity
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Suitability For Isolation
- yes IEC 60947-2
- Poles Description
- 3P
- Awg Gauge
- AWG 14...AWG 3/0 aluminum/copper terminal
- Width
- 104 mm
Network Frequency50/60 Hz
[Ics] Rated Service Breaking Capacity65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Height163 mm
Tightening Torque5-5 N.m 2.5-6 mm² AWG 14...AWG 10) || 14-14 N.m 10-95 mm² AWG 8...AWG 3/0)
Breaking Capacity CodeJ
Local Signallingswitched off (OFF) 1 trip indicator green)
Number Of Slots2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Net Weight2.2 kg
Magnetic Hold Current900 A
Circuit Breaker ApplicationHACR rated
[In] Rated Current100-100 A
Continuous Current Rating80 %
[Ui] Rated Insulation Voltage750 V IEC 60947-2
Communication InterfaceModbus || Ethernet
Quantity Per Set1
Colourblack
Depth86 mm
Specifications
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
Product NamePowerPact H
Device Applicationdistribution
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2206027EN
- Pvc Free
- Yes
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2206027EN
