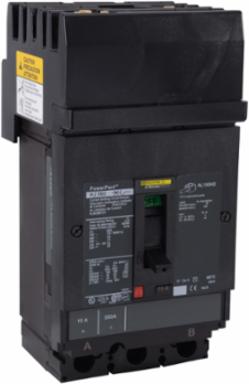

Square D HJA260602 PowerPact H Circuit Breaker, 60A, 2 Pole, 600VAC, 25kA, Thermal Magnetic
- MPN: HJA260602
- UPC: 785901795698
- PPN: SCH-HJA260602
CAD
$2608.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 60A, 2 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth86 mm
Communications & Management Attributes
- Communication Interface
- Modbus, Ethernet
Physical Attributes
- Color
- Black
Wire Stripping Length16 mm
Complementary Attributes
- Line Rated Current
- 60-60 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Number Of Slots
- 2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in)
- Certificate Agency
- UL, CSA, NOM
- Carbon Footprint Of The Distribution Phase [A4]
- 0.3812916237468922, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.01827056403892661, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 235 kg CO2 eq., 234.92896740807268
- Local Publishable Date
- 2026-03-10
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2206027_V2
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- 14 AWG...3/0 AWG aluminium/copper terminal
- Continuous Current Rating
- 80 %
- Device Application
- distribution
- Local Signalling
- switched off (OFF) 1 trip indicator green)
- Magnetic Tripping Current
- 1450-1450 A
- Mounting Support
- bracket
- Number Of Poles
- 2P
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- circuit breaker
- Quality Labels
- CE
- Range
- PowerPact
- Software Version
- v6.2.4
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 248 kg CO2 eq.
- Utilisation Category
- category A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 45
- Width Nominal
- 104 mm
- [Ui] Rated Insulation Voltage
- 750 V IEC 60947-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200020
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Tightening Torque5-5 N.m 2.5-6 mm² (14 AWG...10 AWG), 14-14 N.m 10-95 mm² (8 AWG...3/0 AWG)
[Ics] Rated Service Breaking Capacity100 kA 220/240 V AC 50/60 Hz IEC 60947-265 kA 380/440/415 V AC 50/60 Hz IEC 60947-225 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 3.391969932864633
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 9.231241412339646
Local Data StatusPublishable
Return IndicatorY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1909
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Circuit Breaker ApplicationHACR rated
Control Typetoggle
Electrical ConnectionI-Line connection, linelugs, load
Magnetic Hold Current800 A
Mounting ModeI-Line bracket)
Network Frequency50/60 Hz
Phase ConnectionAC
Product NamePowerPact H
Protected Poles Description2t
Quantity Per Set1
ReturnabilityYes
Suitability For Isolationyes IEC 60947-2
Terminal IdentifierAL150HD
Trip Unit Technologythermal-magnetic
Pep CodeENVPEP2206027EN
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal163 mm
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-3
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Package Weight(Lbs)1.814 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2206027_V2
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Pep Code
- ENVPEP2206027EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating
Recycled Metal Content At Cr Level0 %
Carbon Footprint247.9517409410628
Environmental DisclosureENVPEP2206027EN
Ip Degree Of Protectionfront cover IP40 IEC 60529
Packaging Without Single Use PlasticNo
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3-2023 12 08
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Batteries & Runtime Attributes
- Removable Battery
- No
