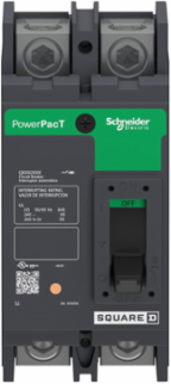

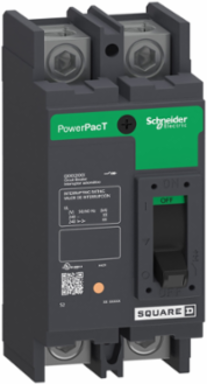

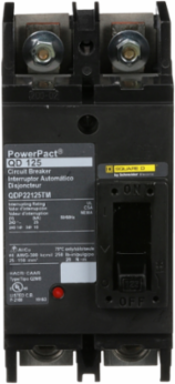

Square D QDP22125TM PowerPact Q Circuit Breaker, 125A, 2 Pole, 240V AC, 25kA
- MPN: QDP22125TM
- UPC: 785901672548
- PPN: SCH-QDP22125TM
CAD
$1402.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has terminal nuts on the line side and lugs on the load side. It has studs on line end with nuts and washers. This PowerPacT Q, 125A, 2 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth3.93 in
Physical Attributes
- Wire Stripping Length
- 22 mm
Complementary Attributes
- Line Rated Current
- 125-125 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Electrical Connection
- terminal nut, line, lugs, load
- Certificate Agency
- UL, CSA, NOM
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 2.141105657
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 12 kg CO2 eq., 11.64189885
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Commercial
- Circuit Breaker Application
- HACR rated
- Control Type
- operating handle
- Energy Efficiency Optimized
- False
- Magnetic Hold Current
- 1200 A
- Mounting Mode
- unit mount lug)
- Network Frequency
- 50/60 Hz
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- circuit breaker
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 261 kg CO2 eq.
- Utilisation Category
- category A
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 451.6875
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; United States, US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; United States, US
- Height Nominal
- 6.47 in
- [Ue] Rated Operational Voltage
- 240 V AC 50/60 Hz UL
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 1.497 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Mechanical Durability1000 cycles loaded, 5000 cycles no load
Carbon Footprint Of The Distribution Phase [A4]0.318671652, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]247 kg CO2 eq., 246.9361157
Local Publishable Date2026-03-26
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1909
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Continuous Current Rating80 %
Device Applicationdistribution
Local Signalling1 trip indicator green)
Magnetic Tripping Current2400-2400 A
Mounting Supportlug
Number Of Poles2P
Product NamePowerPact Q
RangePowerPact
Software Versionv6.1
Tightening Torque28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
Trip Unit Technologythermal-magnetic
Pep CodeENVPEP2311048EN
Pep Verification Date2024-03-01
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; United States, US
Recyclability Potential, In %94
Width Nominal3.00 in
[Uimp] Rated Impulse Withstand Voltage8 kV UL
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Halogen free product
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 40-70 °C
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-03-01
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint261.0377919
Environmental DisclosureENVPEP2311048EN
Halogen Content PerformanceHalogen free product
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2311048EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
