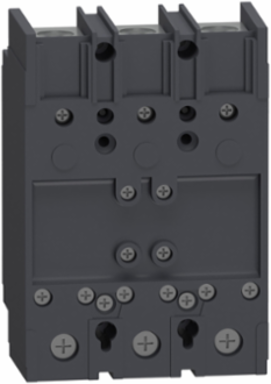

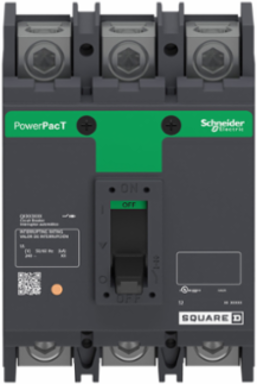

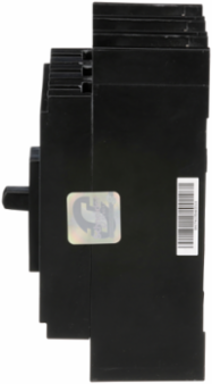

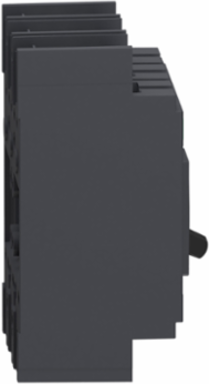

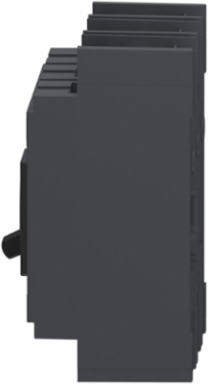

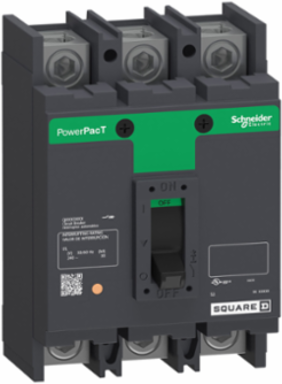

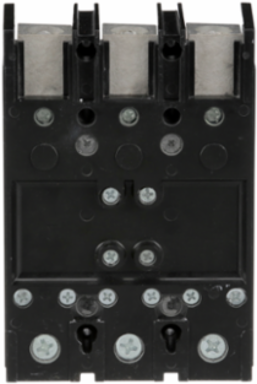

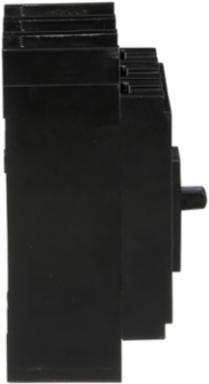

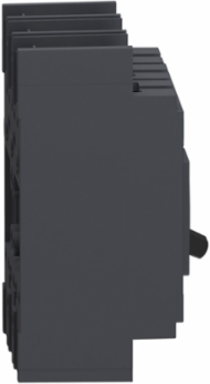

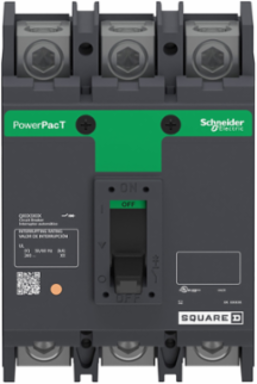

Square D QBL32225 PowerPact Q Circuit Breaker 225A 3-Pole 240VAC 10kA Thermal-Magnetic
- MPN: QBL32225
- UPC: 785901417880
- PPN: SCH-QBL32225
CAD
$824.60
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 225A, 3 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Depth | 3.93 in |
|---|
Physical Attributes
| Wire Stripping Length | 22 mm |
|---|
Complementary Attributes
| Line Rated Current | 225-, 225 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Electrical Connection | lugs, load, lugs, line |
| Carbon Footprint Of The Distribution Phase [A4] | 0.6198783862898292, 0.6 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.41436454334715167, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 45 kg CO2 eq., 45.350942261826184 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1909 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Continuous Current Rating | 80 % |
| Device Application | distribution |
| Local Signalling | 1 trip indicator green) |
| Magnetic Tripping Current | 2400-2400 A |
| Mounting Mode | unit mount lug) |
| Network Frequency | 50/60 Hz |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | circuit breaker |
| Returnability | Yes |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 65 kg CO2 eq. |
| Utilisation Category | category A |
| Pep Code | ENVPEP2311048EN |
| Pep Verification Date | 2025-07-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | [A5] |
| Energy Model - End Of Life [C1-c4] | [C1 - C4] |
| Height Nominal | 6.47 in |
| [Ue] Rated Operational Voltage | 240 V AC 50/60 Hz UL |
| Halogen-free Status | Halogen free product |
| Package Weight(Lbs) | 2.145 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | UL, CSA, NOM |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 4 kg CO2 eq., 3.620324773879172 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 15 kg CO2 eq., 14.700646228636082 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Circuit Breaker Application | HACR rated |
| Control Type | operating handle |
| Energy Efficiency Optimized | False |
| Magnetic Hold Current | 1200 A |
| Mechanical Durability | 1000 cycles loaded5000 cycles no load |
| Mounting Support | lug |
| Number Of Poles | 3P |
| Product Name | PowerPact Q |
| Range | PowerPact |
| Software Version | v6.2.5-6 |
| Tightening Torque | 28-28 N.m 25-150 mm² (4 AWG...300 kcmil) |
| Trip Unit Technology | thermal-magnetic |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Mexico, MX |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 56 |
| Width Nominal | 4.5 in |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV UL |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536200020 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Halogene Performance | Halogen free product |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 40-70 °C |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-07-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 64.70615619397842 |
| Environmental Disclosure | ENVPEP2311048EN |
| Halogen Content Performance | Halogen free product |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2311048EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | circuit breaker |
|---|
ETIM
| ETIM 8 | EC000228 |
|---|
| ETIM 9 | EC000228 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
