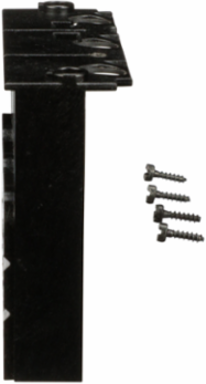

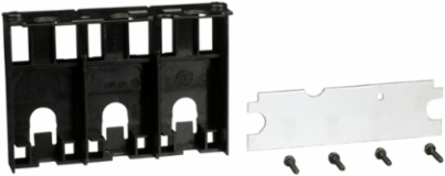

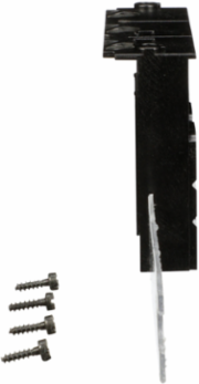

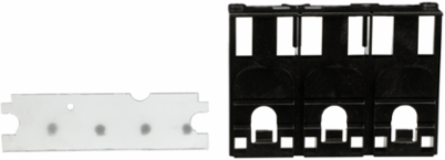

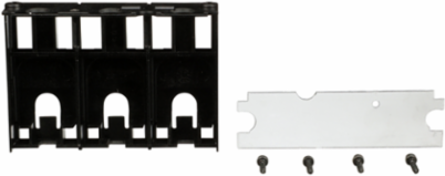

Schneider Electric S37446 Circuit Breaker Short Lug Shield 60A, AWG 3, IP40 Cover

MPN: S37446
UPC: 785901760832
PPN: SCH-S37446

$305.15

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The TeSys™ GV5PB/GV6PB product family are three-pole UL 489 motor protection circuit breakers when combined with a contactor that makes up an entire branch circuit. Save panel space and simplify installation using a two-component solution. Features of the product range include selectable trip class 5/ 10/20 and an adjustable short-circuit time of 5 to 13 times Ir. Solutions cover a range of application needs from compact and cost effective to advanced control and predictive alarming. Choose the best offer based on your application needs. Terminal shields are used for front connection with cables or insulated bars. They comprise two parts assembled with captive screws, forming an IP40 cover. The top part is equipped with sliding grids for precise adaptation to cables or insulated bars. The rear part completely blocks off the connection zone. Terminal shields may be mounted upstream and downstream of the circuit breaker. This PowerPact Multistandard, lug shield is a connection accessory and is for a 3P, 60A breaker. This lug shield can be mounted in either downstream or upstream positions.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Complementary Attributes

Line Rated Current	60 A

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Location Of Connection	downstream, upstream
Local Publishable Date	2026-04-22
Stocking Flag	Y
Serviceability	No
Field Service Division	PPIBS
Weee Product Category	4
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2539
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Awg Gauge	3 AWG
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	PowerPact H
Sustainable Packaging	Yes
Accessory / Separate Part Category	connection accessory
Package Weight(Lbs)	43.800 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Product Or Component Type	lug shield
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908120

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Free Of Svhc	Yes

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	short lug
Reach Regulation	Free of Substances of Very High Concern above the threshold
