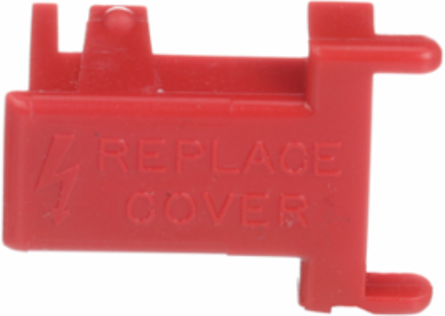

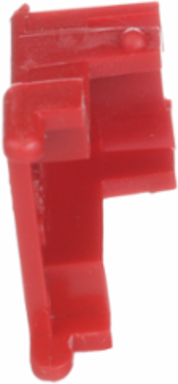

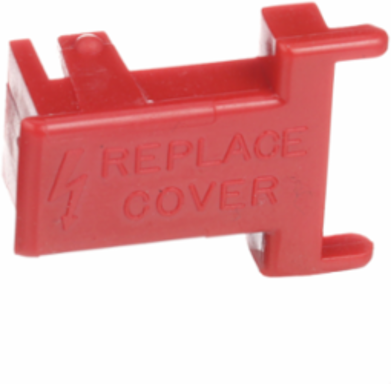

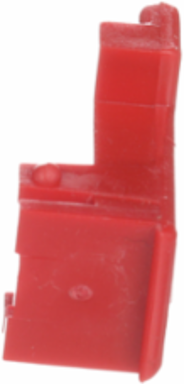

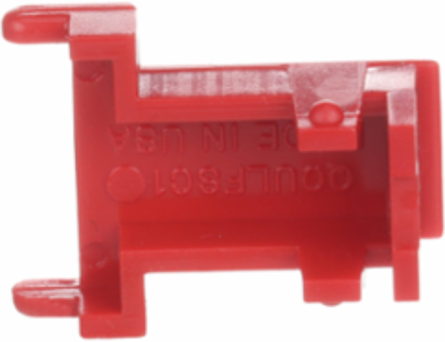

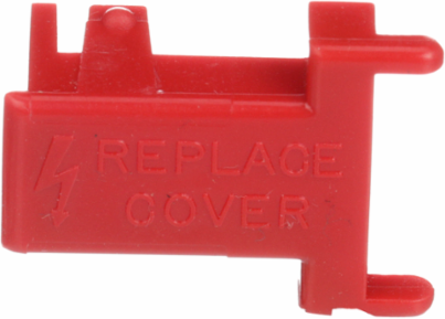

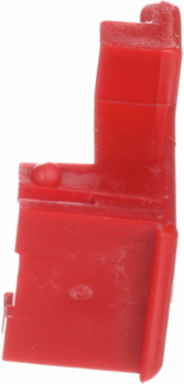

Square D QOULFSC1 QOU Circuit Breaker Finger Safe Cover, Halogen Free, Sustainable
- MPN: QOULFSC1
- UPC: 785901090410
- PPN: SCH-QOULFSC1
- UNSPSC: 39121603
CAD
$8.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
QOU miniature molded case circuit breakers are intended for use in residential and commercial applications. Performed as QOU Circuit Breaker Fingersafe Cover.
Features
- QO MCBs are designed to sheild electronics from short-circuits and overcurrent
- Provides instaneous and time-delayed overcurrent protection
- Idle application for OEMs due to their high performances and multiple mounting options
- Product has been verified by UL and CSA to adhere to the electrical specs stated on the data sheet
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Weight | 45.359 g |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM |
|---|---|
| Carbon Footprint Of The Distribution Phase A4 | 0.0058523742, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0000113304, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 17 kg CO2 eq., 17.3042434783 |
| Local Publishable Date | 2026-03-26 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Destination | QOU circuit breaker |
| Protection Type | fingersafe |
| Returnability | Yes |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Customs Code | 3926909985 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 29 |
| Persona Type Names | End User, Original Equipment Manufacturer |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0 kg CO2 eq., 0.0082919634 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.3 kg CO2 eq., 0.2650428314 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2534 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Device Application | prevent accidental contact with energized part |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | cover |
| Range Of Product | QOU |
| Software Version | EIME v5.9.1 |
| Total Lifecycle Carbon Footprint | 18 kg CO2 eq. |
| Database Version | 2016-11 |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free product |
| Functional Unit Description | Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 24.8784 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Halogene Performance | Halogen free product |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 17.5834419776 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2021-11-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2111016EN |
| Halogen Content Performance | Halogen free product |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2111016EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | cover |
|---|
| Range Of Product | QOU |
|---|
ETIM
| ETIM 8 | EC002035 |
|---|---|
| ETIM 10 | EC002035 |
| ETIM 9 | EC002035 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
