Square D S37449 PowerPacT Multistandard Circuit Breaker Terminal Shield, Lug Shield, Upstream/Downstream

PowerPacT Multistandard Circuit Breaker Terminal Shield, Lug Shield, Upstream/Downstream
PowerPacT Multistandard Circuit Breaker Terminal Shield, Lug Shield, Upstream/Downstream
PowerPacT Multistandard Circuit Breaker Terminal Shield, Lug Shield, Upstream/Downstream
PowerPacT Multistandard Circuit Breaker Terminal Shield, Lug Shield, Upstream/Downstream
PowerPacT Multistandard Circuit Breaker Terminal Shield, Lug Shield, Upstream/Downstream
  • MPN: S37449
  • UPC: 785901704218
  • PPN: SCH-S37449

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$400.63/ EA

Description

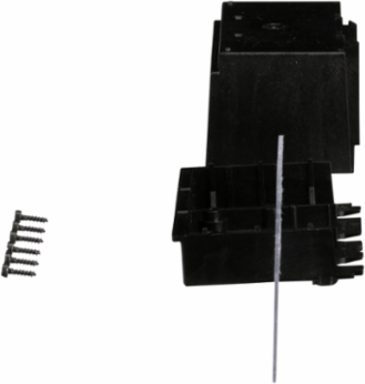

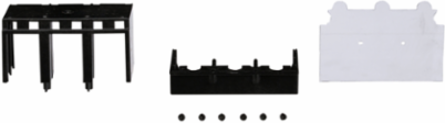

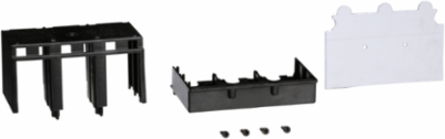

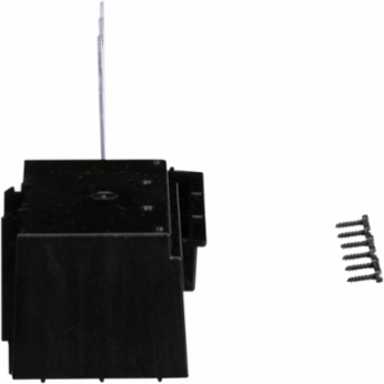

The TeSys™ GV5PB/GV6PB product family are three-pole UL 489 motor protection circuit breakers when combined with a contactor that makes up an entire branch circuit. Save panel space and simplify installation using a two-component solution. Features of the product range include selectable trip class 5/ 10/20 and an adjustable short-circuit time of 5 to 13 times Ir. Solutions cover a range of application needs from compact and cost effective to advanced control and predictive alarming. Choose the best offer based on your application needs. Terminal shields are used for front connection with cables or insulated bars. They comprise two parts assembled with captive screws, forming an IP40 cover. The top part is equipped with sliding grids for precise adaptation to cables or insulated bars. The rear part completely blocks off the connection zone. Terminal shields may be mounted upstream and downstream of the circuit breaker. This PowerPacT Multistandard, lug shield is a connection accessory and is for a 3P breaker. This lug shield can be mounted in either upstream or downstream positions.

Specifications

Specifications

Range Of Product
PowerPact H
Product Or Component Type
lug shield
Accessory / Separate Part Categoryconnection accessory
Product Compatibilitylong lug

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1311006EN
Pvc Free
Yes
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileENVEOLI1311006EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

Location Of Connection
upstream || downstream
