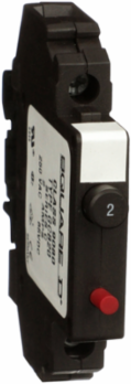

Square D 9080GCB20 Thermal Magnetic Circuit Protector, 2A, 250V AC, 3.15 Inch Width, 3.45 Inch Height
- MPN: 9080GCB20
- UPC: 785901481058
- PPN: SCH-9080GCB20
CAD
$141.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Linergy thermal magnetic circuit protectors are a trip free device. These circuit protectors cab be mounted on 35 mm DIN track or Square D terminal block track. The family has circuit protectors with current ratings from 0.1 to 15 A. This circuit protector has a current rating of 2.0 amperes. The thermal feature trips when there is an overload of ten times rated current or less. The magnetic mechanism trips instantaneously when there is a short circuit. Maximum rating of 200 A, but not exceeding 10,000% (100 times) rated current.
Features
- Delivering a precise 2-amp continuous rating at up to 250V AC, this circuit protector is tailored for isolating low-power control loops, microprocessors, and signal circuits. By isolating faults strictly to the affected branch, it prevents a localized electrical glitch from taking down your entire multi-tier control cabinet or interrupting primary machine operations.
- Designed for rapid control panel integration, this unit mounts directly onto standard 35mm DIN rails or dedicated 9080 track systems. The heavy-duty, spring-loaded mounting clip ensures a secure, vibration-resistant physical grip, reducing panel-building assembly time and allowing electricians to neatly align protectors alongside terminal blocks and contactors.

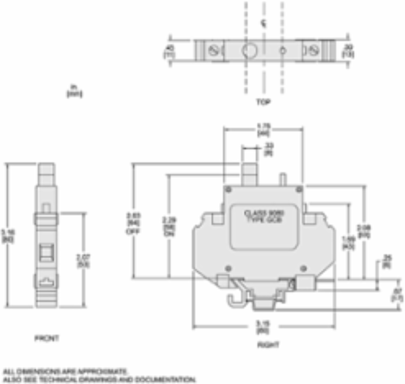

- With optimized physical dimensions of 3.15 inches in width and 3.45 inches in height, this circuit protector maximizes rail density without sacrificing electrical clearance or thermal performance. The compact footprint allows industrial panel builders to pack more protection into smaller control boxes, keeping material costs down and maximizing efficiency in crowded environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany, Indonesia, United States
Depth0.5 in
Physical Attributes
- Wire Stripping Length
- 0.5 in
Complementary Attributes
- Line Rated Current
- 2 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- 9080GH track, 35 mm DIN rail
- [Ue] Rated Operational Voltage
- 250 V AC, 65 V DC
- Local Publishable Date
- 2025-12-17
- Stocking Flag
- N
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- AWG 16...AWG 10 copper
- Device Application
- Industrial Application
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Type
- overcurrent
- Returnability
- Yes
- Temperature For Tripping
- 70 °F
- Trip Unit Technology
- thermal-magnetic
- Wiring Device Additional Information
- factory wiring only
- Width Nominal
- 3.15 in
- Package Weight(Lbs)
- 72.57 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyCSA file 025490 class 3211 07, CE, UL recognized E233026 CCN QVNU2
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1909
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contact Operationtrip-free
Electrical Connectionbox lugs
Number Of Poles1P
Product Or Component TypeCircuit Protector
Range Of Product9080GCB
Sustainable PackagingNo
Tightening Torquecontrol circuit 7-7 lbf.in cage type connector
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal3.45 in
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-22-140 °F, -22-140 °F
Reach Free ShvcYes
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- Circuit Protector
Range Of Product9080GCB
ETIM
- ETIM 8
- EC000042
ETIM 9EC000042
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
