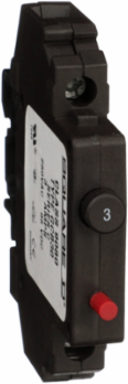

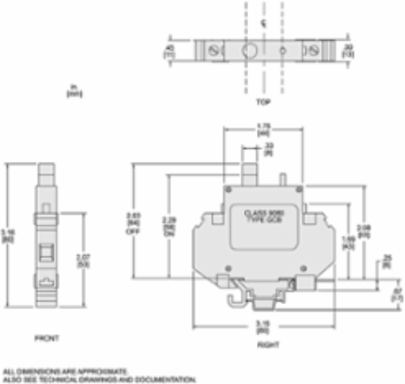

Square D 9080GCB30 Linergy Thermal Magnetic Circuit Protector 3A, 250V AC, 65V DC, 3.45 Inch Height
Square D 9080GCB30 Linergy Thermal Magnetic Circuit Protector 3A, 250V AC, 65V DC, 3.45 Inch Height
- MPN: 9080GCB30
- UPC: 785901481034
- PPN: SCH-9080GCB30
- UNSPSC: 39121410
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$141.69/ EA
Description
Linergy thermal magnetic circuit protectors are a trip free device. These circuit protectors cab be mounted on 35 mm DIN track or Square D terminal block track. The family has circuit protectors with current ratings from 0.1 to 15 A. This circuit protector has a current rating of 3.0 amperes. The thermal feature trips when there is an overload of ten times rated current or less. The magnetic mechanism trips instantaneously when there is a short circuit. Maximum rating of 200 A, but not exceeding 10,000% (100 times) rated current.
Features
- One pole, 3 amps and 250 VAC
- Can be mounted on 35 mm DIN track or Square D terminal block track
- Easily find blown circuit
- 24 circuits per foot due to small size
Specifications
Physical Attributes
- Wire Stripping Length
- 0.5 in
Conformance Attributes
- Product Certifications
- CE, UL recognized E233026 CCN QVNU2, CSA file 025490 class 3211 07
StandardsUL 1077, CSA C22.2 No 235, DIN 57470
Complementary Attributes
- Line Rated Current
- 3 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- 9080GH track, 35 mm DIN rail
- Ue Rated Operational Voltage5
- 250 V AC, 65 V DC
- Local Publishable Date
- 2025-12-17
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- No
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Contact Operation
- trip-free
- Electrical Connection
- box lugs
- Package Weight Lbs
- 72.575 g
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Type
- overcurrent
- Returnability
- Yes
- Tightening Torque
- control circuit 7-7 lbf.in cage type connector
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Stocking Flag
- N
- Temperature For Tripping
- 70 °F
- Global Commercial Status
- Post commercialisation
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Ue Rated Operational Voltage2250 V AC, 65 V DC
Local Data StatusPublishable
ManufacturerSquare D
ServiceabilityNo
Field Service DivisionPPIBS
Legacy WEEE ScopeIn
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
AWG GaugeAWG 16...AWG 10 copper
Device ApplicationIndustrial Application
Energy Efficiency OptimizedFalse
Poles Description1P
Product Or Component TypeCircuit Protector
Range Of Product9080GCB
Sustainable PackagingNo
Trip Unit Technologythermal-magnetic
Medium DescCircuit protector, Linergy, thermal magnetic overcurrent, track mount, 3.0A, 250VAC, 65VDC
Product Kit IdentifierN
Wiring Device Additional Informationfactory wiring only
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- ROHS Exemption Information
- Yes
- Reach Free SHVC
- Yes
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Take BackNo
Recycled Metal Content At Cr Level0 %
Ambient Air Temperature For Operation-22-140 °F
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- Circuit Protector
Range Of Product9080GCB
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 0.5 in
