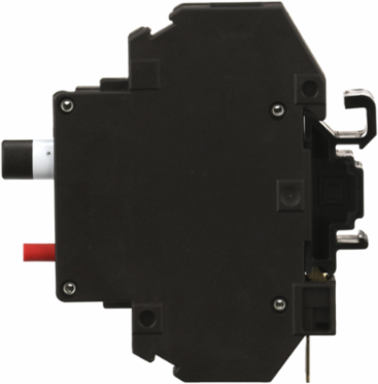

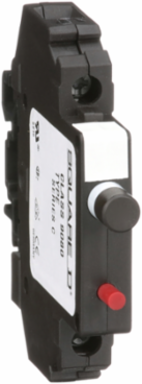

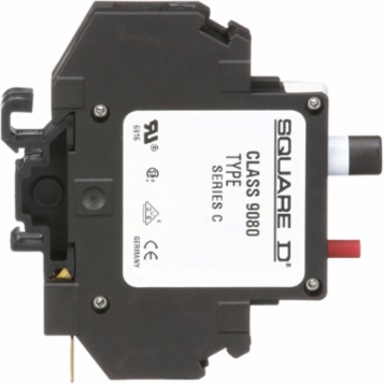

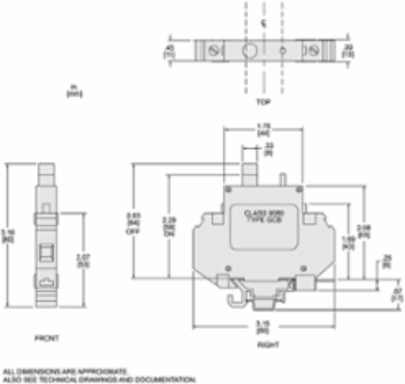

Square D 9080GCB40 Linergy Circuit Protector, Thermal Magnetic, 4A, 250V AC, 35mm DIN Rail
- MPN: 9080GCB40
- UPC: 785901000938
- PPN: SCH-9080GCB40
CAD
$141.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Linergy thermal magnetic circuit protectors are a trip free device. These circuit protectors cab be mounted on 35 mm DIN track or Square D terminal block track. The family has circuit protectors with current ratings from 0.1 to 15 A. This circuit protector has a current rating of 4.0 amperes. The thermal feature trips when there is an overload of ten times rated current or less. The magnetic mechanism trips instantaneously when there is a short circuit. Maximum rating of 200 A, but not exceeding 10,000% (100 times) rated current.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany, Indonesia, United States
Depth0.5 in
Physical Attributes
- Wire Stripping Length
- 0.5 in
Complementary Attributes
- Ue Rated Operational Voltage
- 250 V AC, 65 V DC
Line Rated Current4 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- 35 mm DIN rail, 9080GH track
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1909
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contact Operation
- trip-free
- Electrical Connection
- box lugs
- Number Of Poles
- 1P
- Product Or Component Type
- Circuit Protector
- Range Of Product
- 9080GCB
- Sustainable Packaging
- No
- Tightening Torque
- control circuit 7-7 lbf.in cage type connector
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Warranty In Months
- 18
- Width Nominal
- 3.15 in
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyUL recognized E233026 CCN QVNU2, CE, CSA file 025490 class 3211 07
Local Publishable Date2025-12-17
Stocking FlagN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Awg GaugeAWG 16...AWG 10 copper
Device ApplicationIndustrial Application
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
Protection Typeovercurrent
ReturnabilityYes
Temperature For Tripping70 °F
Trip Unit Technologythermal-magnetic
Wiring Device Additional Informationfactory wiring only
Height Nominal3.45 in
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-22-140 °F, -22-140 °F
Reach Free ShvcYes
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- Circuit Protector
Range Of Product9080GCB
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
