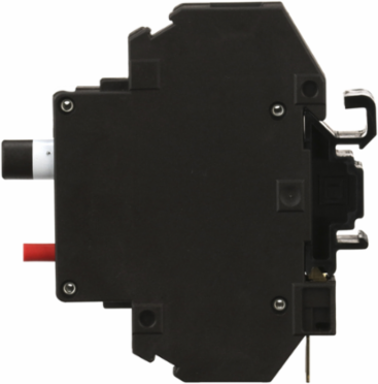

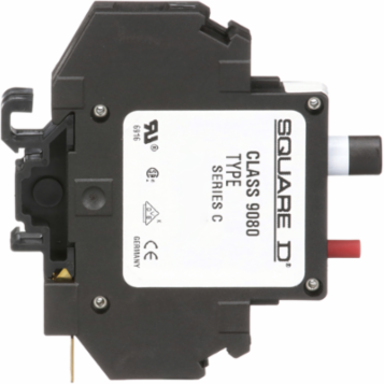

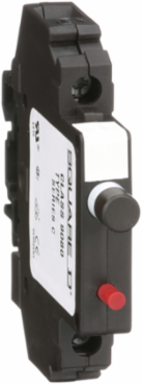

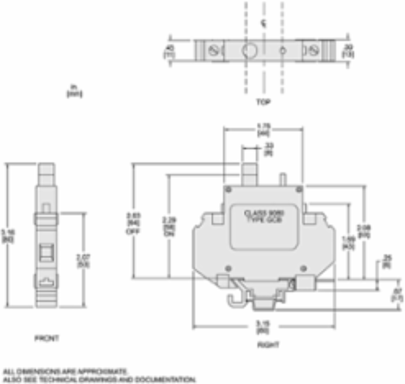

Square D 9080GCB70 Linergy Circuit Protector, 7A Thermal-Magnetic, 250V AC / 65V DC, Track Mount
- MPN: 9080GCB70
- UPC: 785901000945
- PPN: SCH-9080GCB70
CAD
$141.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Linergy thermal magnetic circuit protectors are a trip free device. These circuit protectors cab be mounted on 35 mm DIN track or Square D terminal block track. The family has circuit protectors with current ratings from 0.1 to 15 A. This circuit protector has a current rating of 7.0 amperes. The thermal feature trips when there is an overload of ten times rated current or less. The magnetic mechanism trips instantaneously when there is a short circuit. Maximum rating of 200 A, but not exceeding 10,000% (100 times) rated current.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
Depth0.5 in
Physical Attributes
- Wire Stripping Length
- 0.5 in
Complementary Attributes
- Ue Rated Operational Voltage
- 250 V AC, 65 V DC
Line Rated Current7 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- 9080GH track, 35 mm DIN rail
- Local Data Status
- Publishable
- Return Indicator
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- AWG 16...AWG 10 copper
- Device Application
- Industrial Application
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Type
- overcurrent
- Returnability
- Yes
- Temperature For Tripping
- 70 °F
- Trip Unit Technology
- thermal-magnetic
- Warranty In Months
- 18
- Width Nominal
- 3.15 in
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyCE, UL recognized E233026 CCN QVNU2, CSA file 025490 class 3211 07
Local Publishable Date2025-12-17
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1909
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contact Operationtrip-free
Electrical Connectionbox lugs
Number Of Poles1P
Product Or Component TypeCircuit Protector
Range Of Product9080GCB
Sustainable PackagingNo
Tightening Torquecontrol circuit 7-7 lbf.in cage type connector
Wiring Device Additional Informationfactory wiring only
Height Nominal3.45 in
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-22-140 °F, -22-140 °F
Reach Free ShvcYes
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- Circuit Protector
Range Of Product9080GCB
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
